Description
Oyen Digital 3R5-EB3-120TB Overview
Speed up storage with the Mobius 120TB 5-Bay USB 3.0 RAID Array from Oyen Digital. Featuring five bays populated with 24TB 7200 rpm SATA hard drives, the Mobius features a total capacity of up 120TB, depending on the selected RAID mode. Preconfigured in JBOD, this array 120TB also supports RAID 0, 1, 3, 5, 10, and Span modes. Utilizing USB 3.0/3.1 Gen 1/3.2 Gen 1, FireWire 800 and 400, and eSATA interfaces, the Oyen Digital Mobius is capable of data transfer speeds up to 232.3 MB/s.

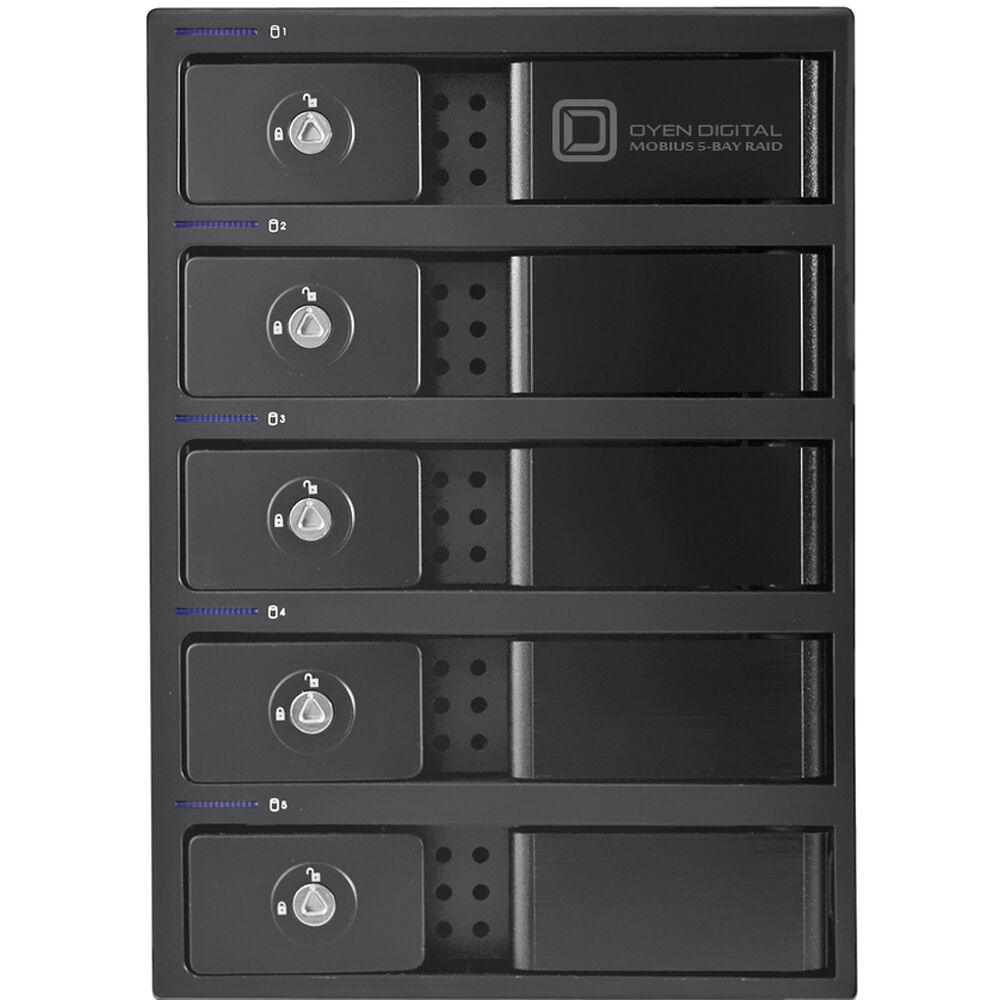

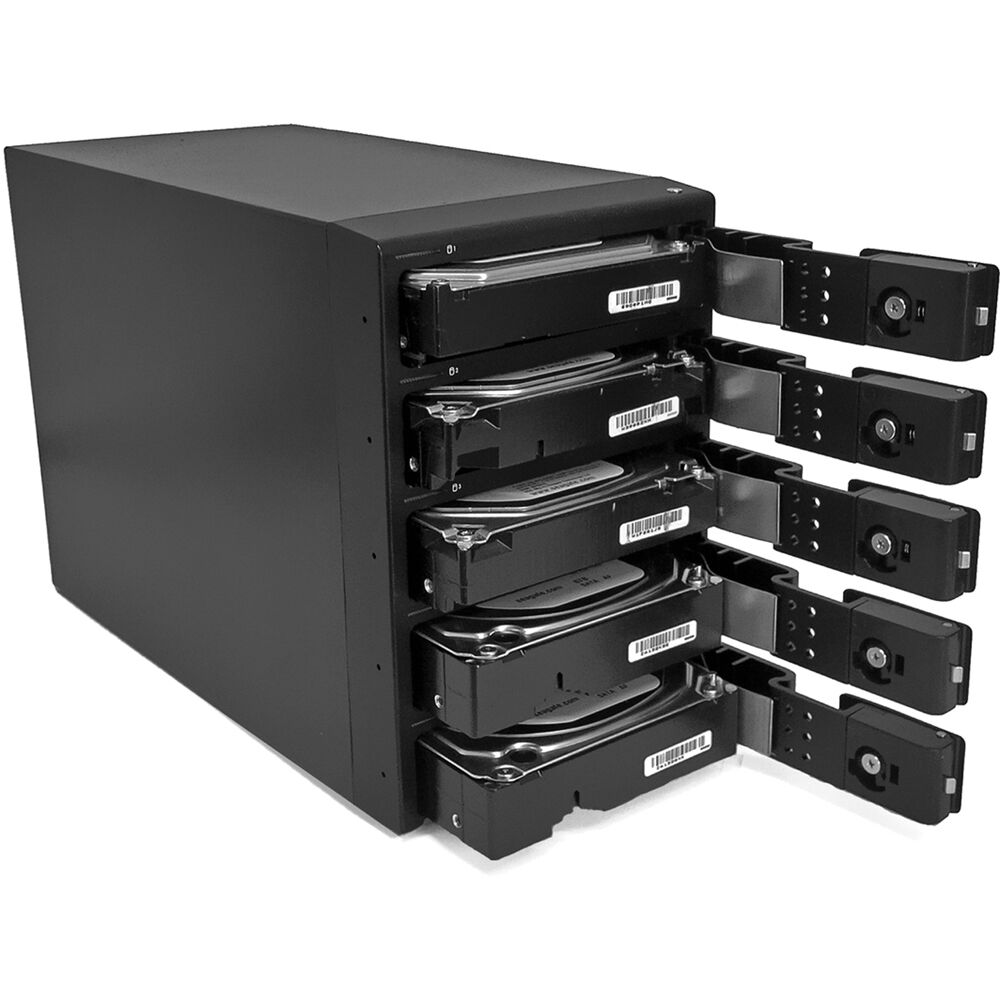

Monitor operating status at a glance with LED indicators. Plus, a trayless design allows for easy installation and removal of hard drives. Constructed from aluminum and sporting two internal exhaust fans, the Mobius is designed for efficient thermal offloading. Operating using a 100 to 240 VAC power supply, this array comes with USB, FireWire 800, and eSATA cables as well as a set of keys. A limited 2-year warranty provides peace of mind for your investment.
- USB 3.0/3.1 Gen 1/3.2 Gen 1: up to 325 MB/s
- FireWire 800/IEEE 1394b: up to 100 MB/s
- eSATA: up to 325 MB/s
- 120TB capacity (formatted capacity will vary depending on the RAID mode selected
- JBOD (default), RAID 0, RAID 1, RAID 3, RAID 5, RAID 10, and Combine (Span)
- Configure the hardware RAID mode easily using mode switches
Items Included
- Oyen Digital Mobius 120TB 5-Bay USB 3.0 RAID Array (5 x 24TB)
- USB 3.0 Cable
- FireWire 800 Cable
- FireWire 400 Cable
- eSATA Cable
- Power Cord
- Key Set
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Oyen Digital 3R5-EB3-120TB Specs
| Storage Capacity |
120 TB
|
| Included Drives |
5x 24 TB 3.5" HDD 7200 RPM
|
| RAID |
Yes, Supported RAID Modes: 0 / 1 / 3 / 5 / 10 / JBOD
|
| Number of Bays |
5x 3.5" SATA II (Hot-Swap, Carrier-Less)
|

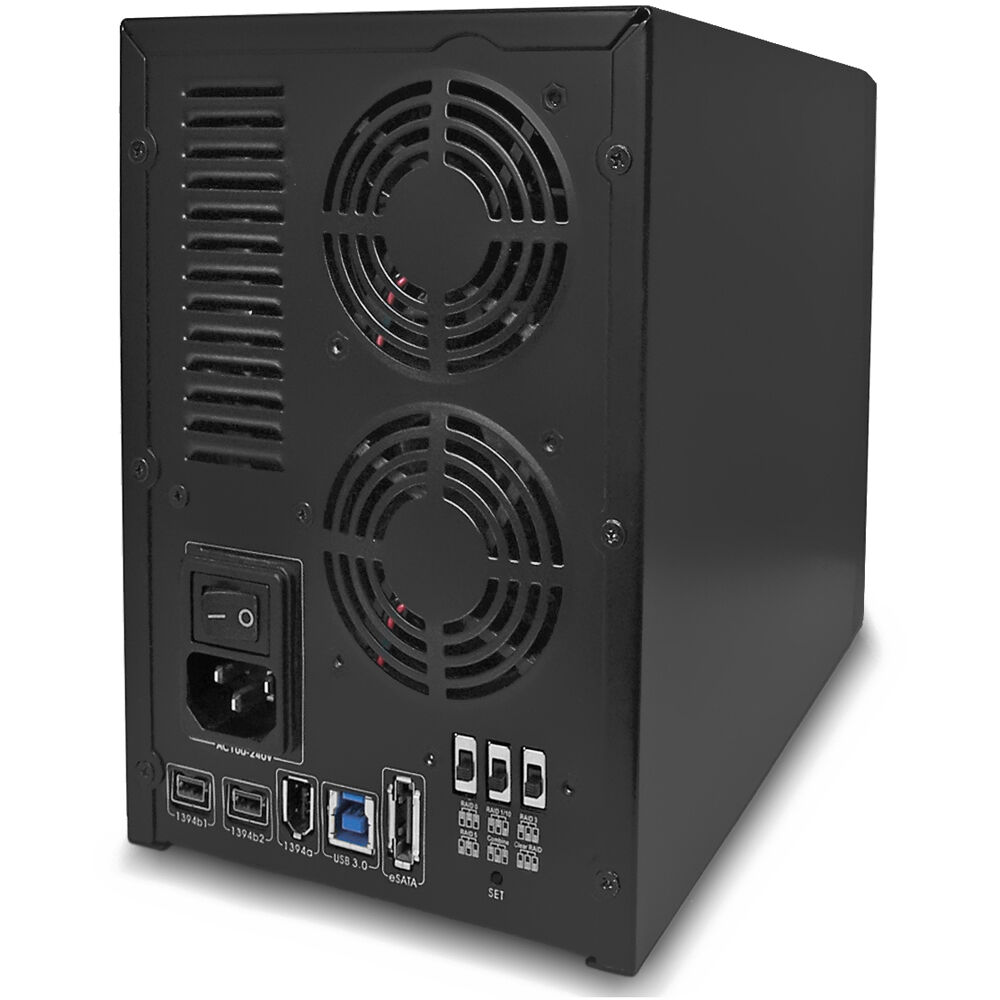

| Inputs/Outputs |
1x USB-B 3.0 / 3.1/3.2 Gen 1
1x eSATA SATA II (3 Gb/s) 2x FireWire 9-Pin FireWire 800 1x FireWire 6-Pin FireWire 400 |
| Storage Capacity |
120 TB
|
| Included Drives |
5x 24 TB 3.5" HDD 7200 RPM
|
| RAID |
Yes, Supported RAID Modes: 0 / 1 / 3 / 5 / 10 / JBOD
|
| Transfer Rates |
245 MB/s (Read in RAID 0)
237 MB/s (Write in RAID 0) 232 MB/s (Read in RAID 1) 198 MB/s (Write in RAID 1) 240 MB/s (Read in RAID 5) 221 MB/s (Write in RAID 5) |
| Number of Bays |
5x 3.5" SATA II (Hot-Swap, Carrier-Less)
|
| Inputs/Outputs |
1x USB-B 3.0 / 3.1/3.2 Gen 1
1x eSATA SATA II (3 Gb/s) 2x FireWire 9-Pin FireWire 800 1x FireWire 6-Pin FireWire 400 |
| Media Card Slots |
No
|
| PCI Expansion |
No
|
| OS Compatibility |
Windows
macOS 10.4 or Later Linux |
| Default OS Support |
Requires Formatting Before Use
|
| Encryption |
No
|
| Security Features |
Lockable Bay Door
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Operating Conditions |
41 to 122°F / 5 to 50°C
|
| Certifications |
CE, FCC
|
| Cooling |
2x Fans
|
| Noise Level |
13.8 dBA
|
| Dimensions |
10.3 x 7.3 x 5.4" / 26.2 x 18.5 x 13.7 cm
|
