iStarUSA BPU-350SATA Overview
Product Introduction: BPU series
Introducing iStarUSA Hard Drive Cages: BPU Series
High level RAID and high availability storage in compact design, BPU-350SATA series adds extra storage and hot-swap capability to satisfy any application needs. The BPU-350SATA is constructed of aluminum material that provides best heat dissipation required for high performance SAS/SATA drives. It is designed with excellent front to back vent airflow. The BPU-350SATA is an ideal solution for internal server RAID and JBOD applications. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.

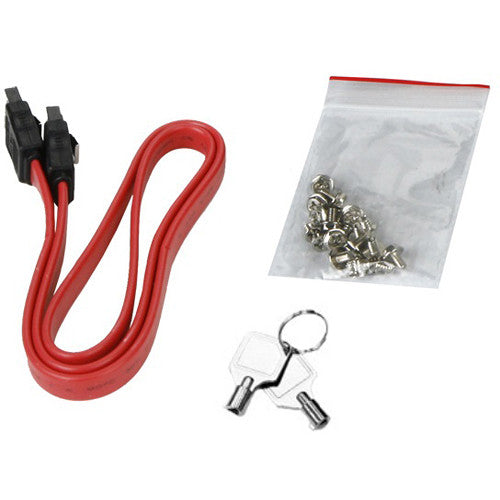

In the Box
- iStarUSA Three 5.25" to Five 3.5"/2.5" SAS SATA 6Gbps HDD SSD Hot-Swap Rack with Key Lock
- 3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack with Key Lock
- 5 x SATA Cable
iStarUSA BPU-350SATA Specs
Technical Information
| Number of Hard Drives Supported |
5 |
I/O Expansions
| Number of Total Expansion Bays |
5 |
| Number of 5.25" Bays |
No |
| Number of 3.5" Bays |
5 |
| Number of 2.5" Bays |
No |
| Number of 2.5"/3.5" Bays |
No |
| Number of 1.8" Bays |
No |
Interfaces/Ports
| Drive Interface |
6Gb/s SAS Serial ATA/600 |
| Host Interface |
6Gb/s SAS Serial ATA/600 |
Physical Characteristics
| Color |
Black |
| Material |
Aluminum Plastic |
| Cooling Fan |
Yes |
| Form Factor |
Internal |
| Compatible Drive Bay Width |
5.25" |
| Height |
5" |
| Width |
5.8" |
| Depth |
8.3" |
Miscellaneous
| Environmentally Friendly |
Yes |
| Environmental Certification |
RoHS |
