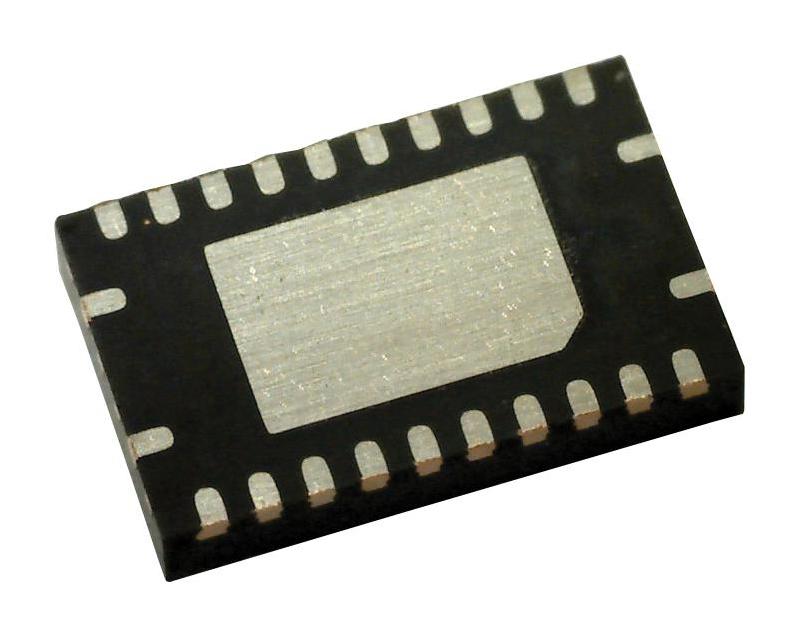

Texas Instruments TPD12S016RKTR TPD12S016RKTR Display Interface Hdmi Level Shifting Buffer I2C 1.1 V to 5.5 Supply UQFN-24

The TPD12S016RKTR is a single-chip High Definition Multimedia Interface (HDMI) device with auto-direction sensing I²C voltage level shift buffers, a load switch and integrated low capacitance high-speed electrostatic discharge (ESD) transient voltage suppression protection diodes. A 55mA current limited 5V output (5V_OUT) sources the HDMI power line. The control of 5V_OUT and the hot plug detect circuitry is independent of the LS_OE control signal and is controlled by the CT_HPD pin, which enables the detection scheme (5V_OUT and HPD) to be active before enabling the HDMI link. The SDA, SCL and CEC lines pull up to VCCA on the A side. On the B side, the CEC_B pin pulls up to an internal 3.3V supply rail, SCL_B and SDA_B each pull up to the 5V rail (5V_OUT). The SCL and SDA pins meet the I²C specification and drive up to 750pF capacitive loads, exceeding the HDMI 1.4 specifications.

• Conforms to HDMI compliance tests without any external components
• Supports HDMI 1.4 data rate
• Matches class D and class C pin mapping
• On-chip load switch with 55mA current limit at the HDMI 5V
• OUT pin
• Back-drive protection on HDMI connector side ports
• Integrated pull-up and pull-down resistors per HDMI specification
• ±8kV Contact discharge
• Green product and no Sb/Br

Applications

Communications & Networking, Portable Devices, Consumer Electronics, Audio, Imaging, Video & Vision

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TPD12S016RKTR
Quantity	Each (Supplied on Cut Tape)
