Description
The DS15EA101SQ/NOPB is an Adaptive Equalizer optimized for equalizing data transmitted over copper cables. It operates over a wide range of data rates from 150Mbps to 1.5+Gbps and automatically adapts to equalize any cable length from zero meters to lengths that attenuate the signal by 35dB at 750MHz. It allows either single-ended or differential input drive. This enables equalization of coaxial cables as well as differential twinax and twisted pair cables. Additional features include an LOS output and an output enable which, when tied together, disable the output when no signal is present. It is powered from a single 3.3V supply and consumes 210mW at 1.5Gbps. It operates over the full -40 to 85°C industrial temperature range.
- Automatic equalization of coaxial, twinax and twisted pair cables
- Up to 35dB of boost at 750MHz
- LOS Detection and output enable
- Single-ended or differential input operation
- 50R Differential outputs
- Green product and no Sb/Br
Automotive
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | DS15EA101SQ/NOPB |
| Quantity | Each (Supplied on Cut Tape) |

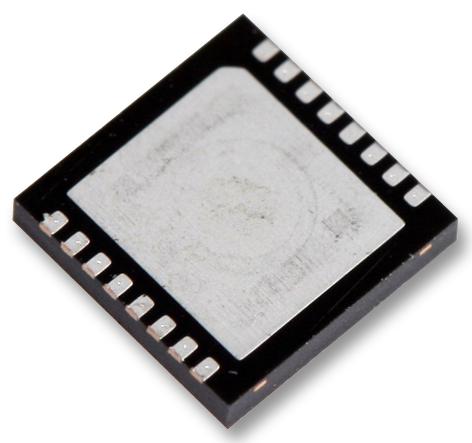

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1549.6 |
| 3-5 | ₹ 1533.78 |
| 5-10 | ₹ 1502.16 |
| 10+ | ₹ 1470.53 |
Bulk discount will be automatically applied during checkout based on quantity.
