Description
Product Overview
CYUSB4347-BZXC is a HX3PD USB 3.1 Gen 2 Type-C Hub with PD. It complies with the USB 3.1 Gen 2 (10 Gbps) specification and the latest Type-C and PD standards. HX3PD supports SuperSpeed USB (10 Gbps), SuperSpeed (5 Gbps), High-Speed (HS), Full-Speed (FS), and Low-Speed (LS) on selective ports. HX3PD provides a complete Type-C and USB PD port controller solution in Upstream (US) and one Downstream (DS) port.
- 7 number of ports, DRP US PD port, DFP DS PD port
- Legacy charging on DS, USB billboard
- USB-IF Certified USB 3.1 Gen 2 Hub Silicon, TID# 5030000008
- USB 3.1 Gen 2-compliant hub controller with 7 downstream ports
- Type-C supported in four ports (1 US port and 3 DS ports), integrated transceiver (baseband PHY)
- Integrated UFP (RD), and current sources for DFP (RP)
- Integrated PD controllers, supporting PD 3.0 specification in US port and 1 DS port
- Upstream: Configurable as either Type-C or Type-B port
- Downstream: Configurable as either three Type-C and four Type-A ports, or seven Type-A ports

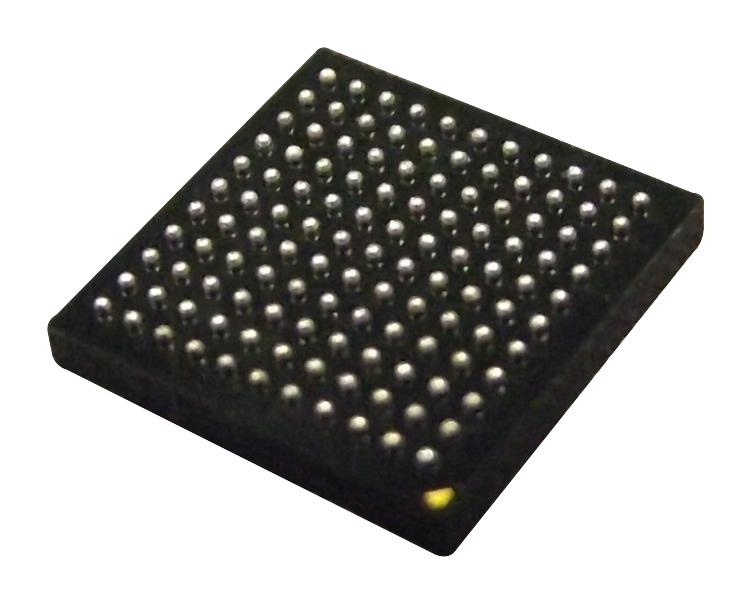

- 192-Ball BGA package, commercial temperature range from 0°C to 70°C
Product details
Other details
| Brand | INFINEON |
| Part Number | CYUSB4347-BZXC |
| Quantity | Each |
| Technical Data Sheet EN |  |
