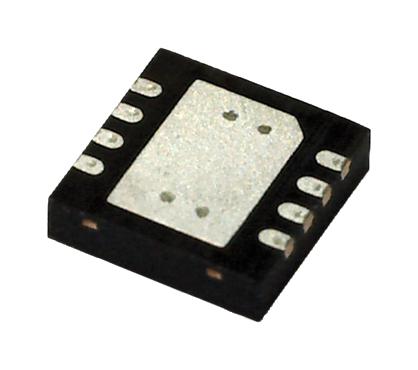

ANALOG DEVICES LTC2850MPDD#PBF RS422/RS485 Transceiver, Half Duplex, 20Mbps, 1 Transmitter/Receiver, 3 V to 3.6 V Supply, DFN-EP-8

LTC2850MPDD#PBF is a low power, 20Mbps RS485/RS422 transceiver operating on 3.3V supply. Failsafe feature that guarantees a high output state under conditions of floating or shorted inputs. The driver maintains a high output impedance over the entire common mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by thermal shutdown. Enhanced ESD protection allows this part to withstand up to ±15kV (human body model) on the transceiver interface pins without latchup or damage. Application includes low power RS485/RS422 transceiver, level translator, backplane transceiver.

• Half duplex, with enables
• Compatible with TIA/EIA-485-A specifications
• 3.3V supply voltage
• Maximum data rate is 20Mbps min
• No damage or latchup up to ±15kV HBM
• Guaranteed failsafe receiver operation over the entire common mode range
• Current limited drivers and thermal shutdown, power up/down glitch-free driver outputs
• Low operating current 370µA typical in receive mode
• 8 lead plastic DFN package, military temperature range from -55°C to 125°C
