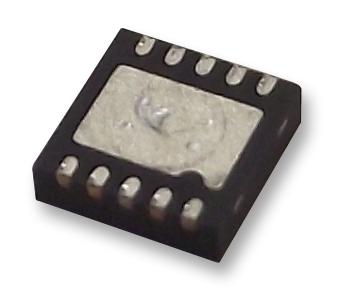

ANALOG DEVICES ADM3062EBCPZ RS485 Transceiver, Half Duplex, 500Kbps, 1 Transmitter/Receiver, 5.5V, -40°C to +125°C, LFCSPEP-10

ADM3062EBCPZ is an IEC electrostatic discharge-protected RS-485 transceiver. It allows the device to withstand ±12kV contact discharges on the transceiver bus pins without latch-up or damage. It features a VIO logic supply pin that allows for a flexible digital interface capable of operating as low as 1.62V. It is suitable for high-speed, 50Mbps bidirectional data communication on multipoint bus transmission lines. It is a half-duplex RS-485 transceiver, fully compliant with the PROFIBUS® standard, with an increased 2.1V bus differential voltage at 4.5V. Excessive power dissipation caused by bus contention or by output shorting is prevented by a thermal shutdown circuit. If a significant temperature increase is detected in the internal driver circuitry during fault conditions, this feature forces the driver output into a high-impedance state. Applications include industrial fieldbuses, process control, building automation, PROFIBUS networks, motor control servo drives, and encoders.

• Half duplex, 1.62V to 5.5V VIO logic supply
• TIA/EIA RS-485 compliant over full supply range
• 3.0V to 5.5V operating voltage range on VCC
• IEC 61000-4-2 ? ±12kV contact discharge, IEC 61000-4-2 ? ±12kV air discharge, HBM ? ±30kV
• Full hot swap support (glitch free power-up/power-down)
• Maximum data rate is 500Kbps min (TA = 25°C, VIO = VCC = 3.3V)
• Full receiver short-circuit, open circuit, and bus idle fail-safe
• Allows connection of up to 128 transceivers onto the bus
• Propagation delay is 220ns typ (RLDIFF capacitor = 54 ohm, TA = 25°C, VIO = VCC = 3.3V)
• 10 lead LFCSP package, temperature range from -40°C to +125°C
