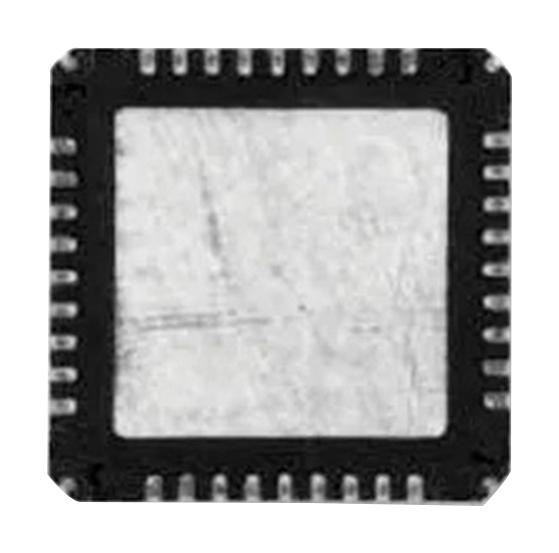

TOSHIBA TC78B011FTG(Z,EL) Motor Driver, 3Phase Brushless Motor, 3 Outputs, 5.5 V to 27 V, 240 mA, -40 °C to 105 °C, WQFN-EP-36

TC78B011FTG(Z,EL) is a 3-phase PWM chopper predriver for a sensorless brushless motor. Motor speed can be controlled by selecting among the PWM duty cycle, analogue voltage, and I²C. Non-volatile memory (NVM) is implemented and it can be set according to the motors and directions for use. It also realizes a closed-loop speed control function without an external microcontroller. It is used with six external MOSFETs inverter to drive sensorless brushless motors of which the output range is wide. The application includes a fan, pump, and portable vacuum motors.

• Sensorless Sine-wave PWM predriver for 3-phase brushless motor
• Sine-wave drive, sensorless PWM drive, capable to drive Delta or Wye configured motors
• Operating voltage range from 5.5 to 27V (absolute maximum rating: 30V)
• Predriver for high side and low side N-ch MOSFETs drive
• Built-in closed loop speed control with adjustable speed curve/thermal shutdown
• Motor speed control by analogue voltage, PWM duty cycle/I²C, abnormality detection output
• Serial interface for various settings, standby mode (STBY pin), current monitor output (PHBF pin)
• CW/CCW control (CWCCW pin), brake input pin (BRAKE pin), rotation speed output (FG pin)
• Charge pump low voltage detection, output current limit, over current detection, lock protection
• QFN36 package, operating temperature range from -40 to 105°C
