Description
Product Overview
TB62261FTG is a controlled bipolar stepping motor driver using a PWM chopper. An interface is PHASE in control. It is fabricated with the BiCD process. Its built-in error detection circuits (Thermal shutdown (TSD), over-current shutdown (ISD) and power-on reset (POR)).
- BiCD process integrated monolithic IC, 2-phase bipolar stepper + push-pull driver class
- Capable of controlling 1 bipolar stepping motor
- PWM controlled constant-current drive, surface mounting
- Allows full, half, quarter step operation, high voltage and current
- Low on-resistance (high and low side is 0.8ohm typical) MOSFET output stage
- Error detection (TSD/ISD) signal output function, number of pins are 48
- Built-in VCC regulator for internal circuit use, operating temperature range from -20 to 85?
- Chopping frequency of a motor can be customized by external resistor and capacitor
- Output voltage of 40V, output current of 1.8A

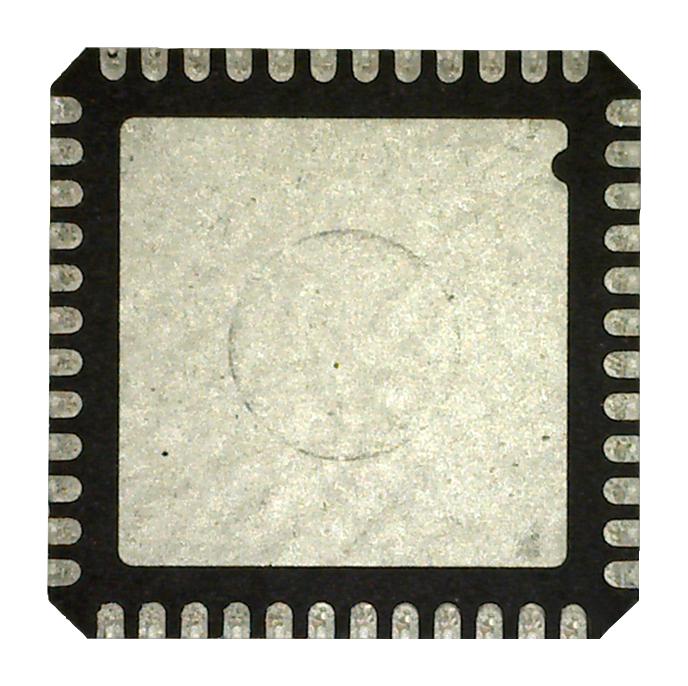

- P-WQFN48-0707-0.50-003 packaging
Warnings
Do not disassemble, analyse, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part.
Product details
Other details
| Brand | TOSHIBA |
| Part Number | TB62261FTG(O,EL) |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
