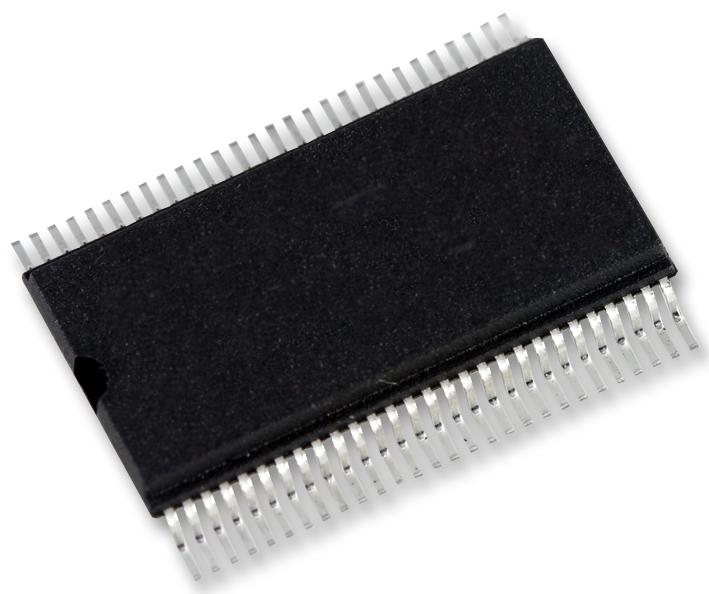

Texas Instruments DRV8302DCA DRV8302DCA Motor Pre-Driver 8V to 60V Supply 2.3A/1 Output HTSSOP-56

The DRV8302DCA is a 3-phase Gate Driver with dual current shunt amplifiers and buck regulator. It provides three half bridge drivers, each capable of driving two N-channel MOSFETs. The device supports up to 1.7A source and 2.3A peak current capability. It can operate off of a single power supply with a wide range from 8 to 60V. It uses a bootstrap gate driver architecture with trickle charge circuitry to support 100% duty cycle. It uses automatic hand shaking when the high-side or low-side MOSFET is switching to prevent current shoot through. Integrated VDS sensing of the high and low-side MOSFETs is used to protect the external power stage against overcurrent conditions. The DRV8302 also includes an integrated switching mode buck converter with adjustable output and switching frequency.

• Bootstrap gate driver with 100% duty cycle support
• Dual integrated current shunt amplifiers with adjustable gain and offset
• Hardware control interface
• Programmable dead time control (DTC) protection
• Programmable overcurrent protection (OCP)
• PVDD and GVDD under-voltage lockout (UVLO) protection
• GVDD over-voltage lockout (OVLO) protection
• Over-temperature warning/shutdown (OTW/OTS) protection
• Reported through nFAULT and nOCTW pins
• 6 or 3 PWM input modes
• 3.3 and 5V Interface support
• Green product and no Sb/Br

Applications

Motor Drive & Control, Robotics, Industrial

Other details

Brand	TEXAS INSTRUMENTS
Part Number	DRV8302DCA
Quantity	Each
