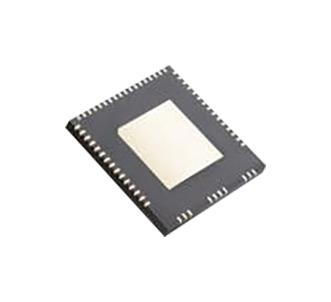

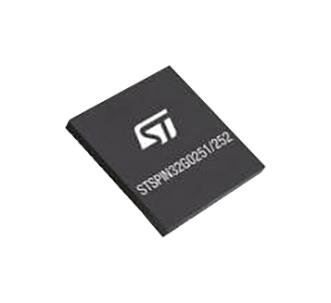

STMICROELECTRONICS STSPIN32G0252Q Motor Driver, Three Phase DC Brushless, 6 Outputs, 9 V to 20 V, -40 °C to 125 °C, QFN-EP-72

STSPIN32G0252Q is a 250V three-phase BLDC controller with an embedded STM32 MCU. It features an Arm 32bit Cortex®-M0+ CPU and a 250 V triple half-bridge gate driver, able to drive N-channel power MOSFETs or IGBTs. A comparator featuring an advanced smartSD function is integrated into the device, ensuring fast and effective protection against overload and overcurrent. The high-voltage bootstrap diodes are also integrated, as well as anti-cross-conduction (interlocking), deadtime, and UVLO protection on both the lower and upper driving sections, which prevents the power switches from operating in low-efficiency or dangerous conditions. Matched delays between low and high-side sections guarantee no cycle distortion. The integrated MCU is based on the high-performance 32bit Arm Cortex®-M0+ core, operating at a frequency up to 64MHz and featuring a memory protection unit (MPU), which enhances the application�s security.

• Gate driving voltage range from 9V to 20V, upto 64MHz clock frequency
• 8Kbyte SRAM with hardware parity check, 64Kbyte flash memory with protection and securable area
• 1 advanced timer for motor control, 16-bit with up to 6 x PWM channels
• 12-bit ADC converter (upto 15 channels) with 2Msps conversion rate
• 5-channel DMA controller with flexible mapping, internal high precision voltage reference
• Integrated bootstrap diodes, comparator for fast overcurrent protection
• UVLO, interlocking, and deadtime functions, smart shutdown (smartSD) function
• Standby mode for low power consumption, on-chip debug support via SWD
• Full set of interfaces: 2x I²C, 2x SPI, 3x UART and 1x low-power UART
• Temperature range from -40°C to +125°C, 72-lead QFN package
