Description
Product Overview

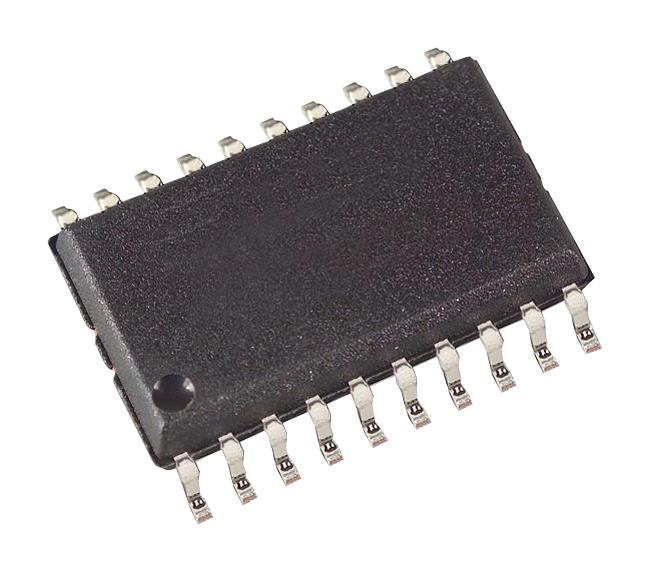

The L6201 is a DMOS full-bridge Driver realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and µC compatible. Each channel (half-bridge) of the device is controlled by a separate logic input, while a common enable controls both channels.
- TTL compatible drive
- Thermal shutdown
- Internal logic supply
- High efficiency
- Cross conduction protection
- Up to 1A total RMS current
- RDS (ON) 0.3? (typical value at 25°C)
- Up to 100kHz operating frequency
- 60V Boostrap peak voltage
Applications
Motor Drive & Control
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | L6201 |
| Quantity | Each |
| Technical Data Sheet EN |  |
