| ₹ 528.49 includes GST and import duties. | |
| B2B customers can avail ₹ 80.59 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

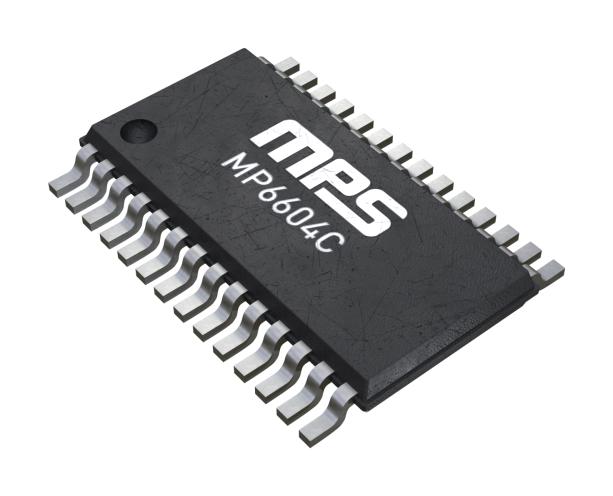

MP6604CGF-P is a simple dual H-bridge driver (HS/LS). It is a dual H-bridge motor driver IC designed to drive stepper motors, brushed DC motors, and other loads. It operates across a 4.5V to 45V input voltage (VIN) range. It can deliver motor current up to 2.5A per phase, depending on the ambient temperature (TA) and PCB layout. Internal safety and diagnostic features include over-current protection (OCP), input overvoltage protection (OVP), input under-voltage protection (UVP), and Thermal shutdown. The MP6604C has separate HS and LS input pins for each output pin. Typical applications are bipolar stepper motors, stage lighting, 3D printers, laser printers and copiers, textile machines.
- 150mohm low on resistance (RDS(ON)) (per MOSFET)
- TSSOP-28EP package
- 2.8mA typical quiescent current (nSLEEP=1, with no load, VIN = 24V, TA = 25°C)
- Junction temperature (TJ) is 150°C
Notes
MPS part numbers ending in "-P" and "-Z" are the same parts. P & Z only indicates reel size.
Product details
Other details
| Brand | MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number | MP6604CGF-P |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 517.92 |
| 3-5 | ₹ 512.64 |
| 5-10 | ₹ 502.07 |
| 10+ | ₹ 491.5 |
Bulk discount will be automatically applied during checkout based on quantity.
