Description
Ecler WARM2 Overview

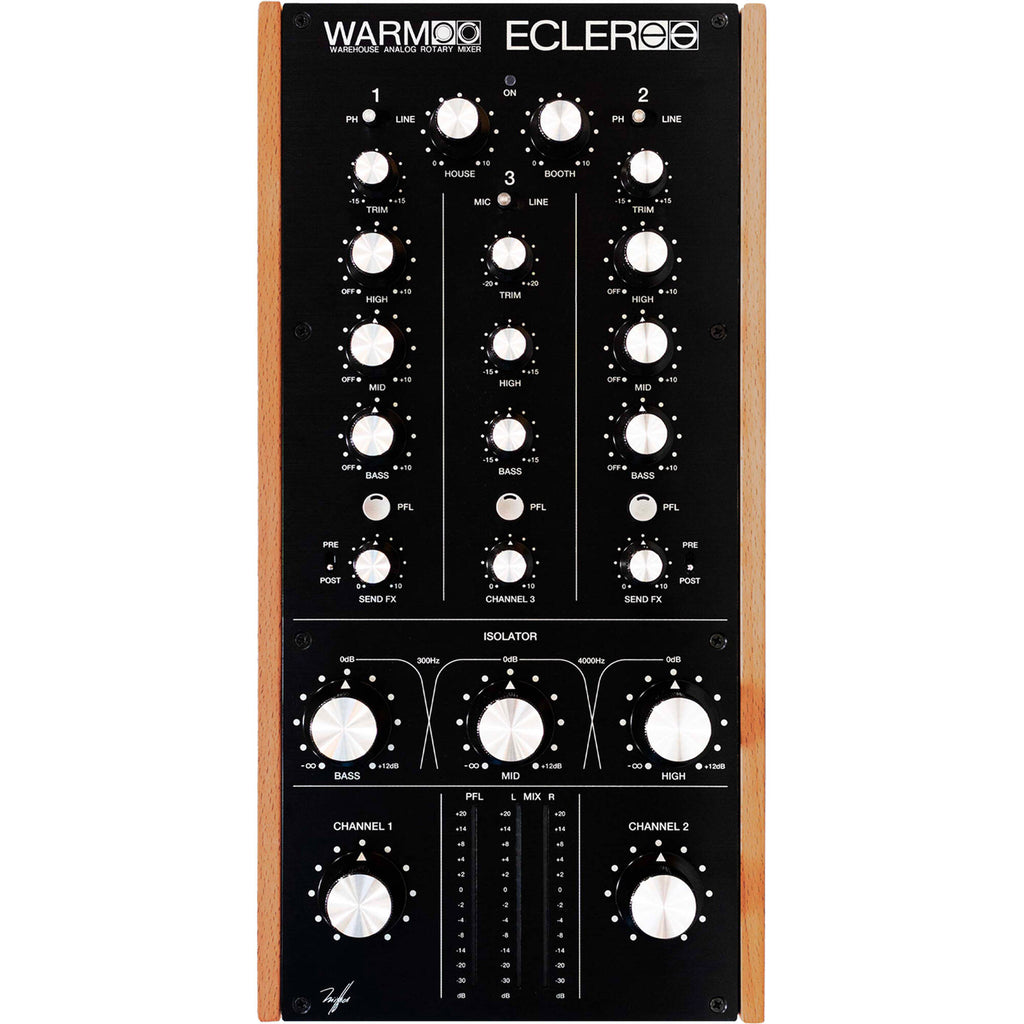

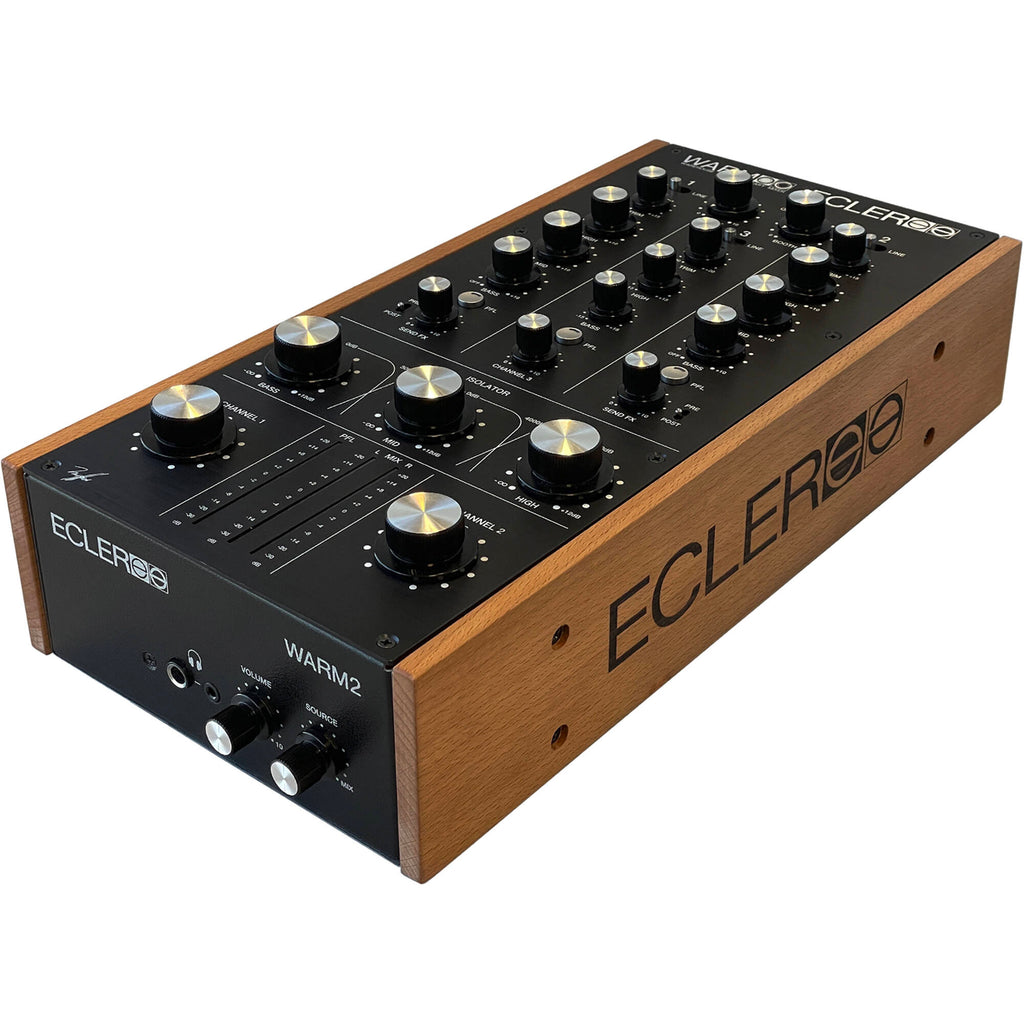

Designed and manufactured in Barcelona, the Ecler WARM2 is a professional, 2-channel analog rotary DJ mixer that utilizes Alps Blue Velvet potentiometers, two phono/line channels, and one mic/line channel to deliver a warm and clear analog sound with a slim profile for the space conscious mobile DJ.
The WARM2 also includes classic sharp filters, a 4th order isolator, 3-band EQ on channels 1&2, and a 2-band EQ on channel 3. The output section includes balanced XLR and RCA House outputs as well as a dedicated record output, and an effects send / return to external processors. The enclosure has a screen-printed faceplate by selective anodizing and includes wooden side panels.
Benefits
- 2+1 mixing channels
- 1 micro (Mic) input
- 2 phono inputs
- 3 line inputs
- Master output (House) on XLR and RCA connectors
- Booth output on RCA connectors

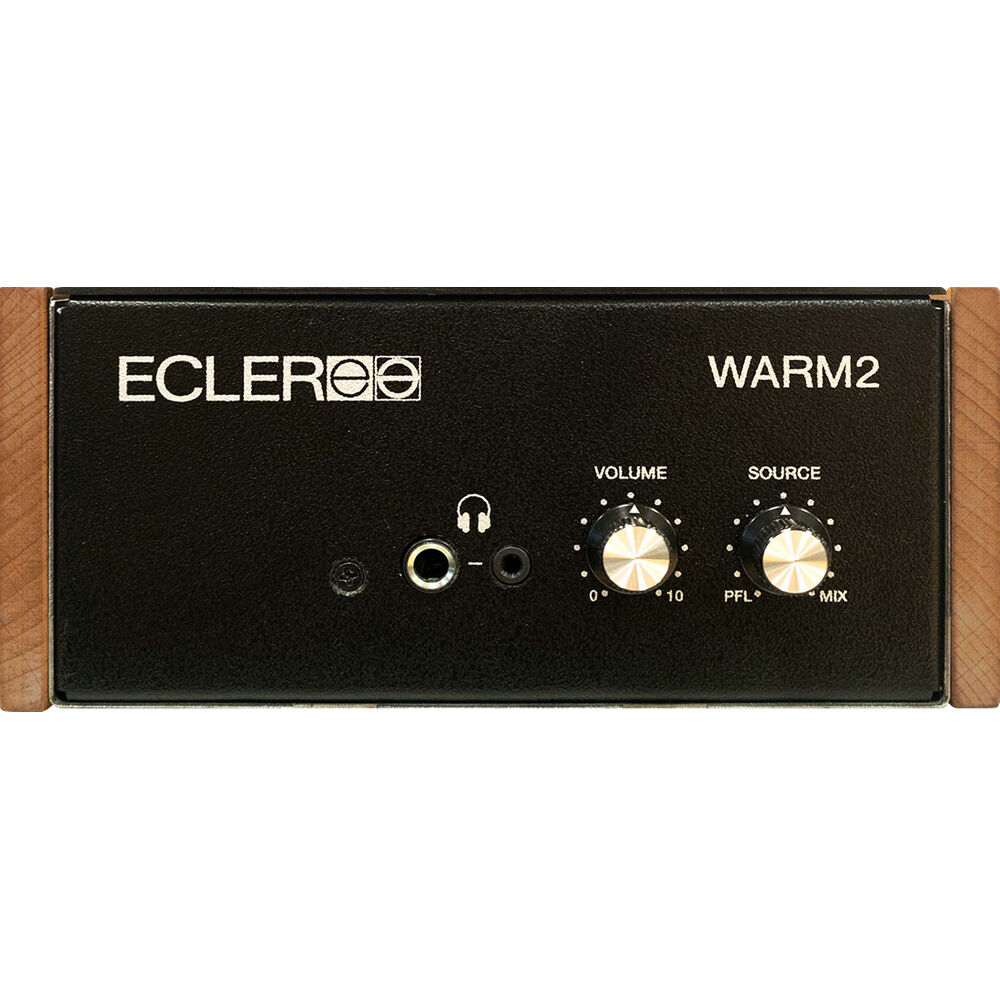

- 1/4" Jack and 3.5mm TRS headphone monitor outputs
Additional Details
- 3-band full cut EQ for main channels and 2-band full cut EQ for Mic/Line channel
- 3 bands isolator (300 Hz and 4 kHz, -?/+12 dB, 4th order 24 dB/oct )
- Maximum output without distortions: 21 dBV (23 dBu)
- Mechanized from a solid block of aluminum knob, without visible screw. Ecler unique design
- Alps Blue Velvet potentiometers
- FX Send control and Pre/Post fader selector
- Screen-printed faceplate by selective anodizing
- Wooden side panels included
Items Included
- Ecler WARM2 Professional 2-Channel Analog Rotary DJ Mixer
- IEC Power Cord
- Limited 1-Year Manufacturer Warranty
Additional Resources
Ecler WARM2 Specs
Key Specs
| Configuration |
DJ Mixer
|
| Number of Channels |
3x Stereo
|
| Performance Controls |
EQ
|
| Built-In Effects |
No
|
| Audio Inputs |
3x Stereo 2RCA Coaxial Line Input
2x Stereo 2RCA Coaxial Phono Input 1x 1/4" TRS Balanced Mic Input 1x Stereo 2RCA Coaxial Return Input |
| Audio Outputs |
2x XLR 3-Pin Balanced Master Output
1x Stereo 2RCA Coaxial Unbalanced Master Output 1x Stereo 2RCA Coaxial Unbalanced Booth Output 1x Stereo 2RCA Coaxial Unbalanced Record Output 1x Stereo 2RCA Coaxial Send Output 1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| USB |
No
|
| Number of Channels |
3x Stereo
|
| Platter/Jog Wheel |
No
|
| Faders |
No
|
| Meters |
Main Meter:
2x 12-Segment LED Bus Meter: 1x 12-Segment LED |
| Meter Range |
-30 dB to +20 dB Before Clip
|
| Sample Pads |
No
|
| EQ |
3x Channel EQ:
Hi: -50 to +10 dB at 200 Hz Mid: -40 +10 dB Low: -50 +10 dB at 6.8 kHz |
| Performance Controls |
EQ
|
| Built-In Effects |
No
|
| Stems Processing |
No
|
Connectivity
| Audio Inputs |
3x Stereo 2RCA Coaxial Line Input
2x Stereo 2RCA Coaxial Phono Input 1x 1/4" TRS Balanced Mic Input 1x Stereo 2RCA Coaxial Return Input |
| Audio Outputs |
2x XLR 3-Pin Balanced Master Output
1x Stereo 2RCA Coaxial Unbalanced Master Output 1x Stereo 2RCA Coaxial Unbalanced Booth Output 1x Stereo 2RCA Coaxial Unbalanced Record Output 1x Stereo 2RCA Coaxial Send Output 1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output |
| Other I/O |
1x Phono Ground Terminal
|
| Phantom Power |
18 V
|
| USB |
No
|
| Wireless |
No
|
| Media Card Slots |
No
|
Performance
| Frequency Response |
Line Input:
10 Hz to 30 kHz -1 dB Mic Input: 10 Hz to 25 kHz -1 dB Aux: 10 Hz to 50 kHz -1 dB |
| Input Level |
Stereo RCA Line:
0 dBV (50 Kilohms) Stereo RCA Phono: -40 dBV (50 Kilohms) 1/4" Mic: -50 dBV (>1 Kilohms) Stereo RCA Return: 0 dBV (>6 Kilohms) |
| Gain/Trim Range |
Stereo RCA Line/Phono Input:
+0 dB to +15 dB Stereo RCA Line Input: +0 dB to +20 dB |
| Output Level |
XLR Master:
0 dBV (600 Ohms 1V) Stereo RCA Booth/Master/Send: 0 dBV (2.2 Kilohms) Record: 0 dBV (10 Kilohms) |
| SNR |
Line:
>99 dB Mic: >85 dB Phono: >98 dB Send/Return: >100 dB |
| THD+N |
Stereo RCA Line Input:
0.006% 1/8" /3.5 mm Mic Input: 0.9% Stereo RCA Phono Input: 0.08% Stereo RCA Aux Input: 0.005% |
Compatibility
| Included Software |
No
|
| OS Compatibility |
No
|
Power
| Power Requirements |
AC Input
|
| AC Input Power |
90 to 264 VAC, 50/60 Hz
|
| AC Power I/O |
1x IEC Input
|
| Power Consumption |
30 VA
|
Physical
| Dimensions (W x D x H) |
15.7 x 7.3 x 3.9" / 400.0 x 185.0 x 100.0 mm
|
| Weight |
7.9 lb / 3.6 kg
|
Packaging Info
| Package Weight |
10.46 lb
|
| Box Dimensions (LxWxH) |
19 x 10.75 x 6.5"
|
