Product Overview

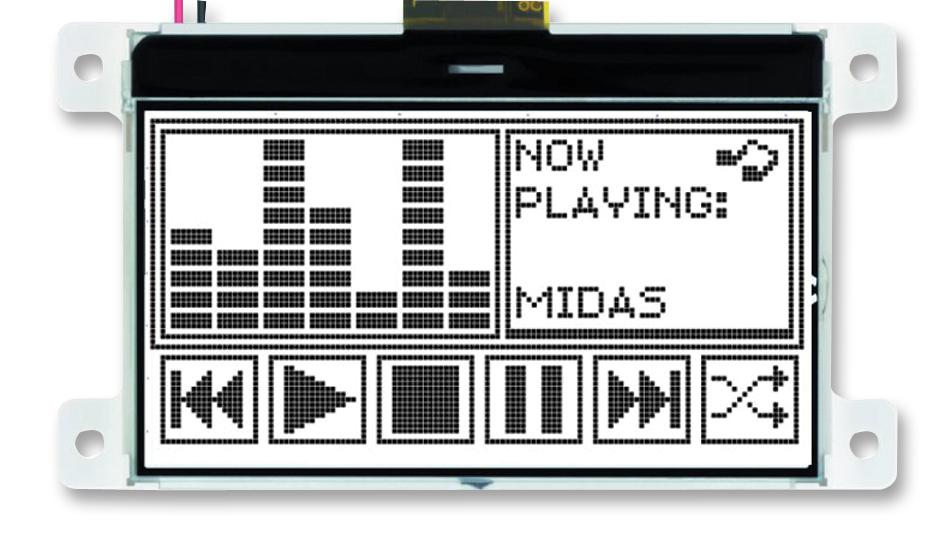

- Graphic LCD module
- Resolution 128x64 dots (128 x 64)
- Positive mode FSTN material
- Appearance black dots on white background
- Transflective technology, for both outdoor and indoor applications
- Chip on glass construction (COG) for reduced power and low profile requirements
- Mounting lugs fitted for convenient assembly
- On glass ST7565P Controller with standard parallel interface
- 3V logic supply
- 1/65 display duty and 1/9 driving bias
- Preferred 6 o'clock viewing angle
- White LED backlight
- Wide operating temperature range -20 to +70oC
- 30 way flat flexi cable (FFC), 0.5mm pitch. Plus LED backlight connector
- Overall dimensions - 89.7 x 49.8 x 12.1mm excluding FFC
- Viewing area - 69.0 x 36.5mm
- Dot size - 0.47 x 0.47mm
Product details
Technical Specifications
Operating Temperature Min
-20°C
Display Appearance
Black on White
Display Mode
Transflective
Module Size
89.7mm x 49.8mm
Operating Temperature Max
70°C
Backlighting Colour
White LED
SVHC
No SVHC (27-Jun-2024)
Other details
| Brand |
MIDAS DISPLAYS |
| Part Number |
MCCOG128064C6W-FPTLW |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
