Description

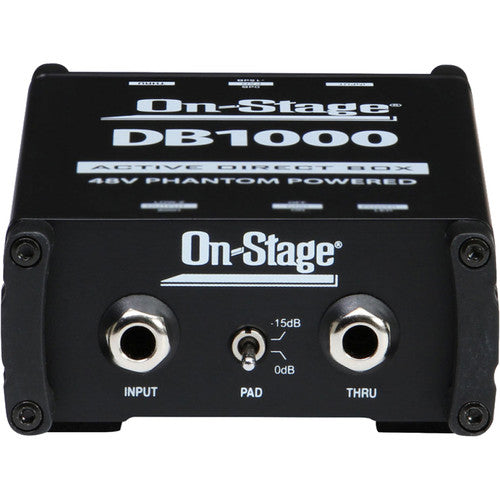

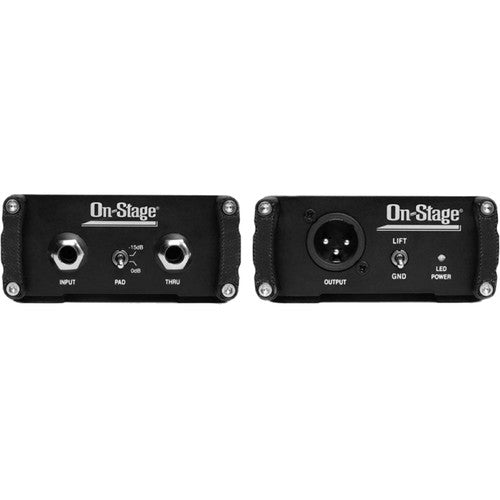

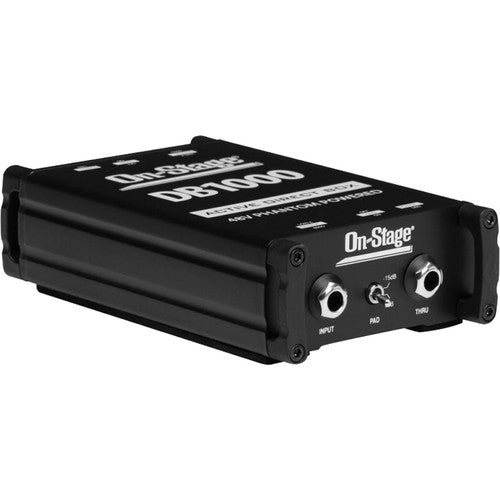

On-Stage DB1000 Overview
Connect your keyboard, guitar, or bass directly to your preferred mic preamp with the On-Stage DB1000 active mono DI box. It adapts a high-impedance, instrument-level 1/4" TS input to a low-impedance, mic-level XLR output. By converting your signal from unbalanced to balanced, it allows longer cable runs, less noise, and proper compatibility with mic inputs.
A 1/4" TS thru jack provides an unbalanced pass-through to an instrument amplifier or pedalboard. Flip the -15 dB pad switch to prevent distortion when accepting high-output sources, and utilize the ground-lift switch to rid your signal of hum from ground loops. Since the DB1000 is a phantom-powered direct box, no batteries, power cables, or AC adapters are required. It features a durable metal housing with protective nylon bumpers, making it equally well suited for constant use in the studio, on stage, or at home.
Ideal for connecting a keyboard, guitar, or bass to a mixing console, an outboard mic preamp, or an audio interface
Transforms an unbalanced, high-impedance, instrument-level input signal to a balanced, low-impedance, mic-level output signal
Isolated 1/4" TS input
Selectable -15 dB pad prevents distortion when accepting high-output sources such as guitars and basses with active electronics
3-pin XLR male output socket for direct connection to a microphone preamp
1/4" TS thru jack provides an unbalanced, instrument-level split to an amplifier or pedalboard
Ground-lift switch eliminates hum caused by problematic ground loops
LED power indicator
UPC: 659814125562
In the Box
- On-Stage DB1000 Active Mono DI Box
- Limited 3-Year Manufacturer Warranty
On-Stage DB1000 Specs
| Type |
Active
|
| Input Connections |
1 x 1/4" TS (Unbalanced)
|
| Output Connectors |
1 x 3-Pin XLR Male (Balanced)
1 x 1/4" TS Thru (Unbalanced) |
| Pad |
-15 dB
|
| Controls |
Pad Switch
Ground-Lift Switch |
| Input Resistance |
220 kOhms
|
| Frequency Response |
10 Hz to 40 kHz
|
| Power Requirement |
48 VDC Phantom Power
|
| Construction Material |
Enclosure: Metal
Bumpers: Nylon |
| Dimensions |
3.5 x 1.5 x 6.0" / 8.9 x 3.8 x 15.2 cm
|
| Weight |
0.7 lb / 0.3 kg
|
Packaging Info
| Package Weight |
0.88 lb
|
| Box Dimensions (LxWxH) |
6.9 x 5.9 x 2.9"
|
