Description

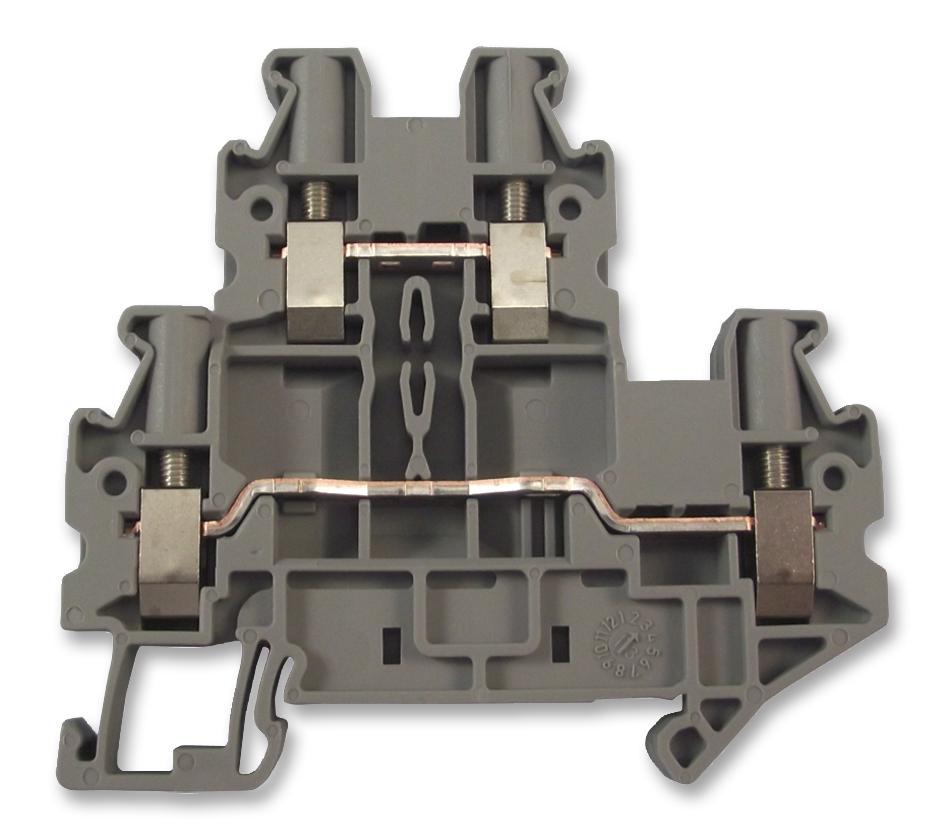

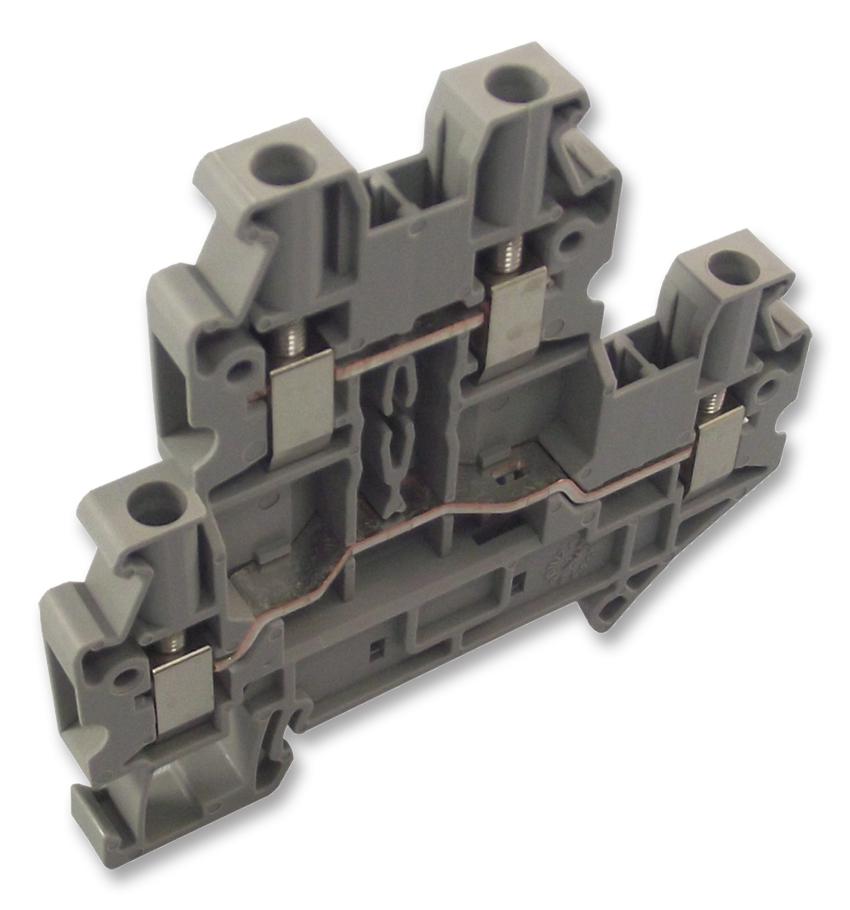

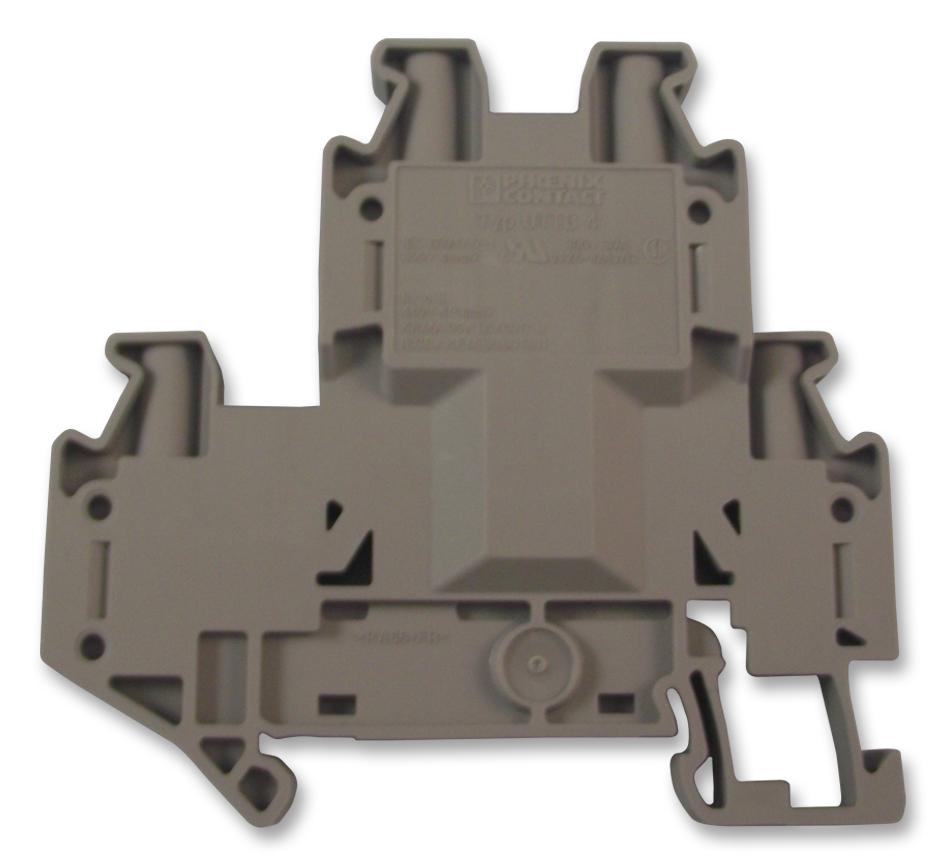

The 3044814 is a 4-position 2-level grey Terminal Block with a polyamide insulator, the M3 screw connection and the NS 35/7,5, NS 35/15 mounting. This UTTB 4 terminal block has two function shafts per level, all potential distribution tasks can be implemented quickly. As an option, the levels can be connected using the FBS-PV UT vertical bridge. For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks. It accepts 26 to 10AWG wire range.
- For a clear overview, each terminal point supports large-surface labelling
- Half-sine shock form
- 9mm Stripping length
- UL94V-0 Flammability rating
Applications
Industrial, Automation & Process Control
Product details
| No. of Positions: 4Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 10AWG |
| Conductor Area CSA: 6mm² |
| Wire Connection Method: Screw |
| Rated Current: 30A |
| Rated Voltage: 800V |
| No. of Levels: 2 |
| Product Range: UTTB |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3044814 |
| Quantity | Each |
| Technical Data Sheet EN |  |
