Product Overview

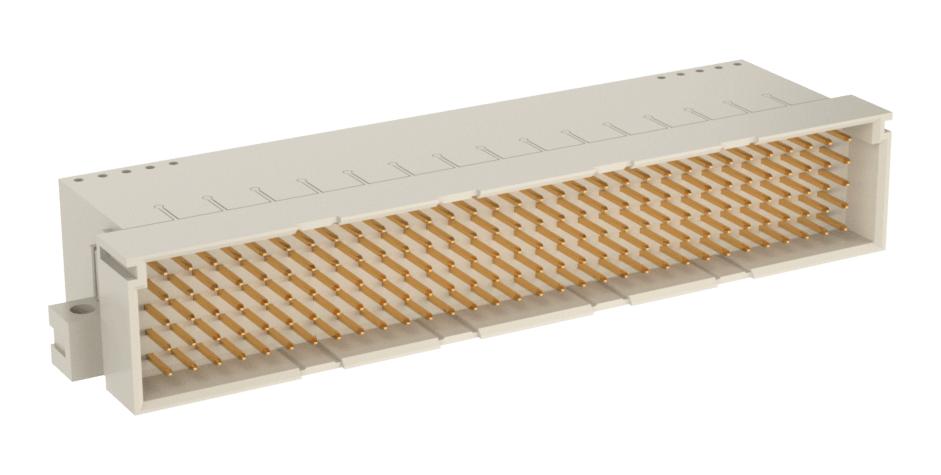

- DIN Type E160 male connector
- 2.54mm pitch, 160-pin, solder termination
- Right angle orientation
- 1Gbit/s data rate
- 400 mating cycle
- IEC 60603-2 standard
- Max operating temperature of 125°C
Product details
Technical Specifications
Contact Plating
Gold Plated Contacts
No. of Contacts
160Contacts
Rows Loaded
a + b + c + d + e
Contact Material
Copper Alloy
SVHC
No SVHC (21-Jan-2025)
Other details
Brand |
ERNI - TE CONNECTIVITY |
Part Number |
384299-E |
Quantity |
Each |
Technical Data Sheet EN |
 |
