Description

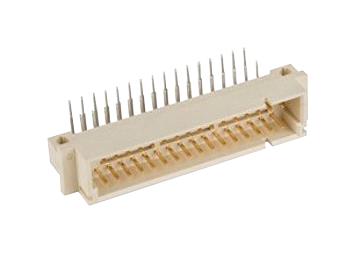

DIN 41612 High Temperature (HT) connectors meet fire safety standards required in Industrial and Transportation applications. The 2.54mm pitch connectors comply with standards like IEC 603-2, NFF 16-101/102 and EN45545-2.
- High temperature resin, suitable for THR process
- Ideal for Industrial & Instrumentation segment: Railways & Medical
- Insulator: High Temperature Thermoplastic Polyester, UL94V-0, Natural
- Current Rating: 2A max (At 20°C: 1.5A)
- Test Voltage: 1000Vrms
- Operating Temperature: -55°C to +125°C
Applications
Industrial, Automotive, Consumer Electronics, Medical, Signalling, Lighting
Product details
| Product Range: - |
| No. of Contacts: 32Contacts |
| Gender: Header |
| Pitch Spacing: 2.54mm |
| No. of Rows: 2 Row |
| Rows Loaded: a + c |
| Contact Plating: Gold Plated Contacts |
| Contact Material: Copper Alloy |
| No. of Mating Cycles: 400 |
Other details
| Brand | AMPHENOL COMMUNICATIONS SOLUTIONS |
| Part Number | 86094327313T55F1LF |
| Quantity | Each |
| Technical Data Sheet EN |  |
