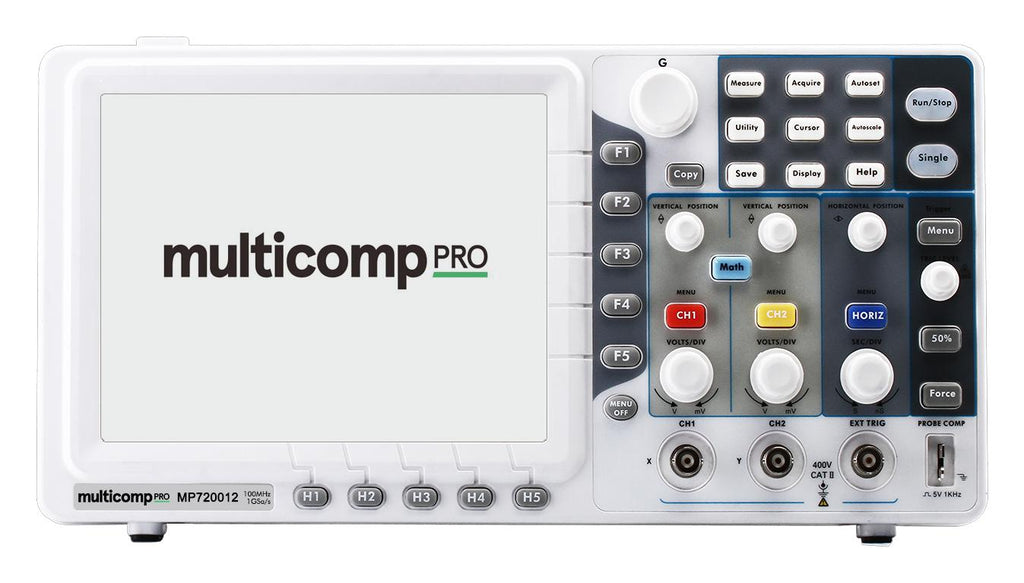

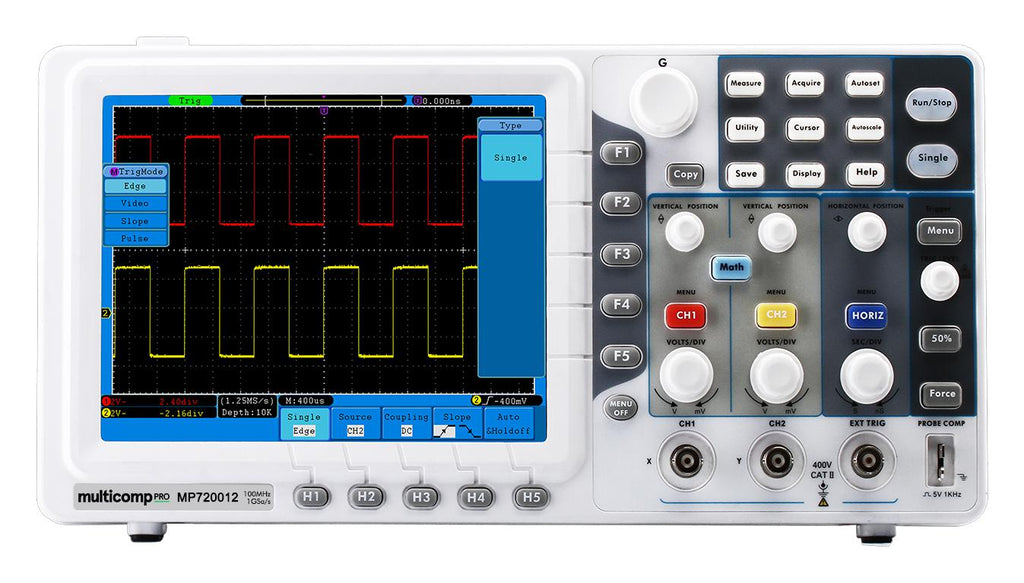

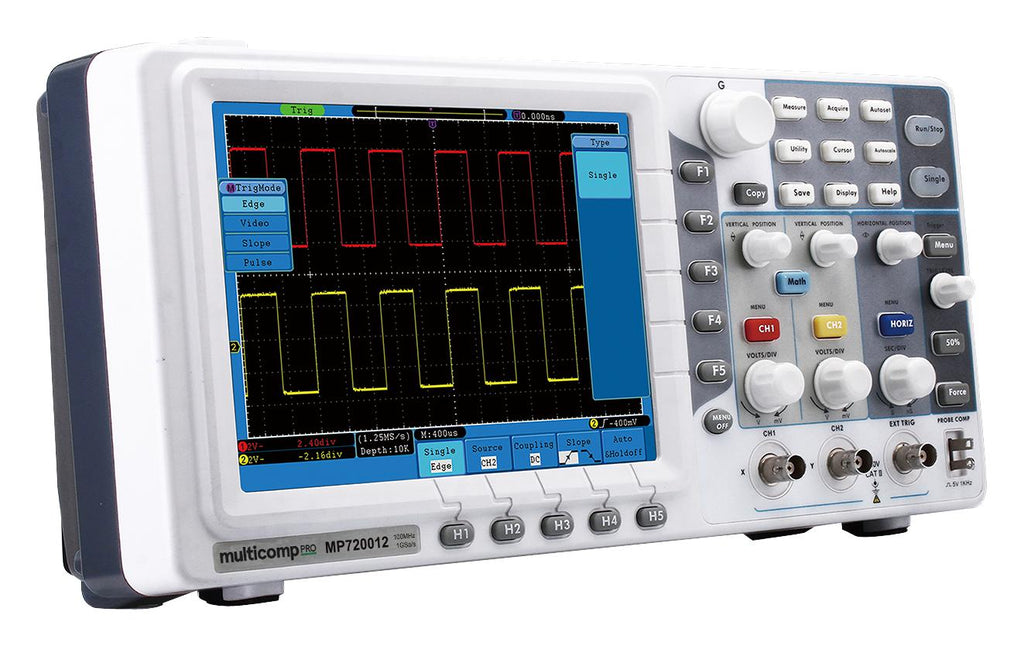

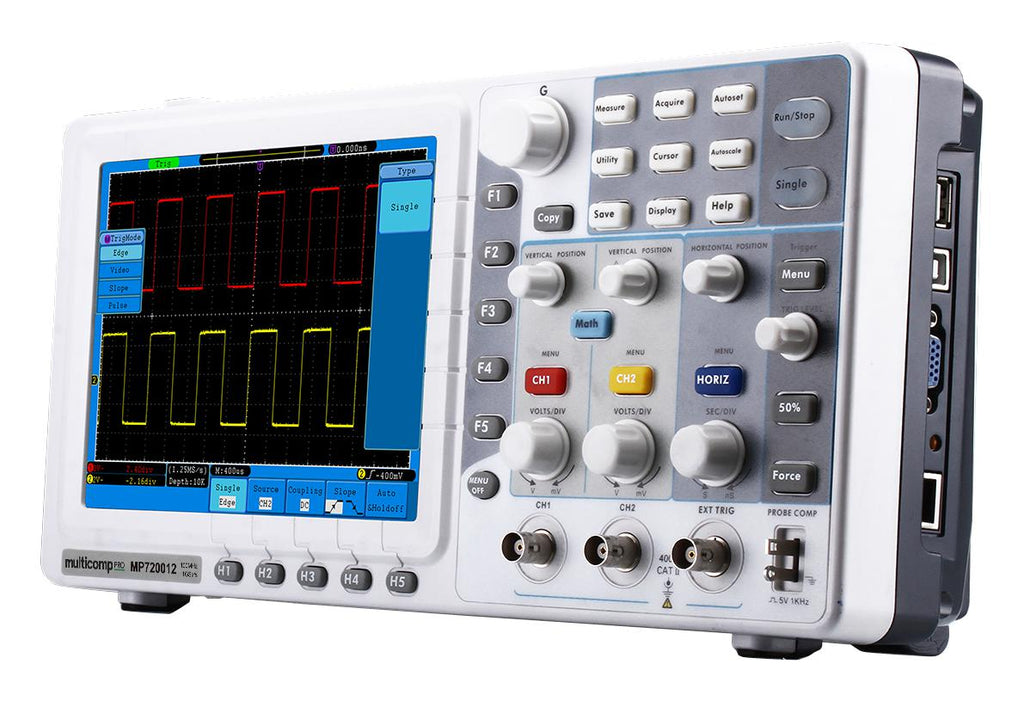

The Multicomp Pro MP720012 is a 2 channel (1 external), 100MHz, 8-bit, economical type digital storage oscilloscope. Featuring an 8" high resolution LCD colour display, ultra-thin body, pass/fail functions, SCPI and LabVIEW compatibility and newly added digital filtering and current measurement functionality.
- Large 8" high resolution LCD display (800x600)
- Auto-scale function
- Pass/fail function which compares the template signal edit by user (horizontal and vertical occupation) with input signal
- Waveform record/play function supporting 2-channel waveform and pass/fail recording
- Horizontal scale - 2ns/div~100s/div, step by 1~2~5
- 10M record length
- 8 bit vertical resolution (A/D) (2 channels simultaneously)
- 2mV/div~10V/div vertical sensitivity (at input)
- Edge, pulse, video, slope and alternative trigger types
- Auto, normal and single trigger modes
- USB host, USB device, Pass/Fail and LAN
- Dimensions - 348 x 170 x 78mm
- Device weight - 1.5kg
Contents
Digital Storage Oscilloscope, 2x 100MHz Probes, Probe Manual, Accessories Bag, Operating Instructions, CD-ROM, UK & EU Power Cords
Footnotes In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
Product details
| Product Range |
Eco Series |
| Scope Channels |
2 Analogue, 1 Ext Trigger |
| Bandwidth |
100MHz |
| Sampling Rate |
1GSPS |
| Display Memory Depth |
1 Mpts |
| Calculated Rise Time |
3.5ns |
| Scope Display Type |
LCD Colour |
| Kit Contents |
DSO, Power Cord, USB Cable, CD Rom, Probes, Probe Adjust Tool, Optional Acc: Soft Bag |
| Manufacturer Warranty |
1 Year |
| Plug Type |
EU, UK |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP720012 EU-UK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
