Description

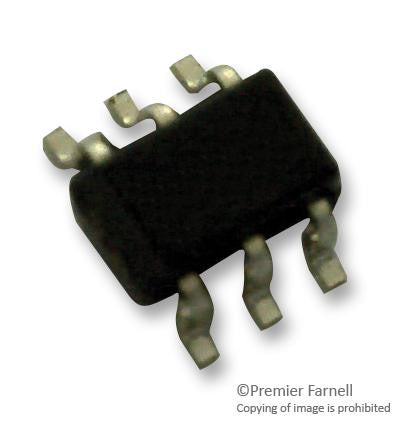

This is a Volatile Digital Potentiometer, 10 kohm, Single, I2C, Linear, ± 20%, 2.7 V product from ON SEMICONDUCTOR with the model number CAT5138SDI-10GT3
Product details
| Operating Temperature Min | -40°C |
| No. of Steps | 128 |
| Operating Temperature Max | 85°C |
| Control Interface | I2C |
| No. of Pins | 6Pins |
| Resistance Tolerance | ± 20% |
| No. of Pots | Single |
| Product Range | Single 128-Tap Volatile Digital Pots |
| Automotive Qualification Standard | - |
| Track Taper | Linear |
| End To End Resistance | 10kohm |
| Temperature Coefficient | ± 300ppm/°C |
| Supply Voltage Min | 2.7V |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| Potentiometer IC Case Style | SC-70 |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | ON SEMICONDUCTOR |
| Part Number | CAT5138SDI-10GT3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
