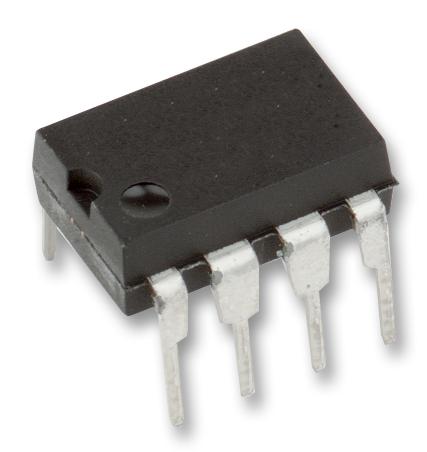

MICROCHIP MCP41010-E/P Volatile Digital Potentiometer, 10 kohm, Single, Serial, SPI, Linear, 2.7 V

MCP41010-E/P is a single digital potentiometer with SPI� interface. The wiper position of the varies linearly and is controlled via an industry-standard SPI interface. The devices consume <lt/>1µA during static operation. A software shutdown feature is provided that disconnects the �A� terminal from the resistor stack and simultaneously connects the wiper to the �B� terminal. The wiper is reset to the mid-scale position (80h) upon power-up. The active-low RS (reset) pin implements a hardware reset and also returns the wiper to mid-scale.

• 256 taps for each potentiometer, SPI� serial interface (mode 0,0 and 1,1)
• Low power CMOS technology
• Supply current, static is 0.01µA typ (active low CS/SHDN/RS = VDD = 5.5V, SO = Open, TA = +25°C)
• Shutdown feature open circuits of all resistors for maximum power savings
• Operating voltage range from 2.7 to 5.5V (VDD = 5V, VSS = 0V, VB = 0V, TA = +25°C)
• Rheostat tempco is 800ppm/°C typ (VDD = 5V, VSS = 0V, VB = 0V, TA = +25°C)
• Differential non-linearity is ±1/4LSB typ (VDD = 5V, VSS = 0V, VB = 0V, TA = +25°C)
• Integral non-linearity is ±1/4LSB typ (VDD = 5V, VSS = 0V, VB = 0V, TA = +25°C)
• Full scale error is -0.7LSB typ (Code FFh, VDD = 5V, TA = +25°C)
• 8 pin PDIP package, extended operating temperature range from -40 to 125°C
