Description
The MAX5437EUD+ is a ±15V low drift digital potentiometer in 14 pin TSSOP package. This device is a single 128 position high voltage digital potentiometer which performs the same function as mechanical potentiometer but replace the mechanics with a simple digital interface. It includes an on-chip high voltage uncommitted amplifier providing additional reduction in board space and cost. The resistor string uses its own analogue supplies (VDD and VSS) that require VDD - VSS to be greater than 9V and less than 31.5V which allows for greater flexibility in voltage ranges that can be used with the device.
- Supply voltage range is 10V to 30V (single supply operation)
- 28V to -10V single negative supply operation
- ±5V to ±15V dual supply operation
- Operating temperature range from -40°C to 85°C
- Power-on reset, wiper goes to midscale (position 64)
- Ratiometric temperature coefficient of 5ppm/°C
- End to end resistance is 50Kohm at ±25% tolerance and temperature coefficient is 35ppm/°C
- Glitchless switching between resistor taps
- 3-wire SPI/QSPI/MICROWIRE compatible serial interface
Applications
Power Management
- :
- -40°C
- :
- 128
- :
- 85°C
- :
- SPI
- :
- 14Pins
- :
- ± 25%
- :
- Single
- :
- Single 128-Tap Volatile Digital Pots
- :
- -
- :
- Linear
- :
- 50kohm
- :
- 35ppm/°C
- :
- 10V
- :
- Each
- :
- 30V
- :
- TSSOP
- :
- MSL 1 - Unlimited
Product details
| Operating Temperature Min | -40°C |
| No. of Steps | 128 |
| Operating Temperature Max | 85°C |
| Control Interface | SPI |
| No. of Pins | 14Pins |
| Resistance Tolerance | ± 25% |
| No. of Pots | Single |
| Product Range | Single 128-Tap Volatile Digital Pots |
| Automotive Qualification Standard | - |
| Track Taper | Linear |
| End To End Resistance | 50kohm |
| Temperature Coefficient | 35ppm/°C |
| Supply Voltage Min | 10V |
| Packaging | Each |
| Supply Voltage Max | 30V |
| Potentiometer IC Case Style | TSSOP |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX5437EUD+ |
| Quantity | Each |
| Technical Data Sheet EN |  |

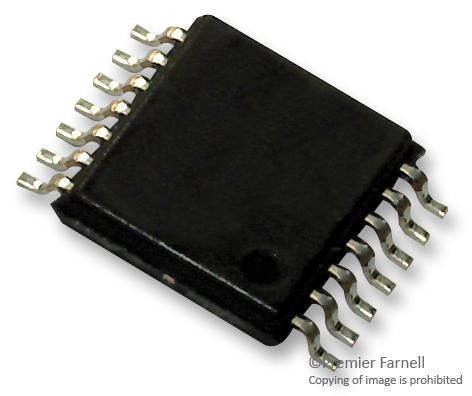

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
