Description
The MAX5434LEZT+T is a 32-tap, non-volatile linear taper digital potentiometer in 6 pin TSOT-23 package. MAX5434 performs the function of a mechanical potentiometer but replaces the mechanics with a simple 2-wire serial interface. The fast-mode I²C-compatible serial interface allows communication at data rate up to 400kbps. This device is used in applications such as digitally controlled resistors, voltage-divider, LCD screen adjustments, low-drift and programmable-gain amplifier circuit configurations.
- Supply voltage range is 2.7V to 5.25V
- Operating temperature range from -40°C to 85°C
- Internal EEPROM returns the wiper to its previously stored position at power-up
- End to end resistance is 50Kohm at ±25% tolerance
- End to end resistance temperature coefficient of 35ppm/°C
- Ratiometric temperature coefficient of 5ppm/°C
- Static supply current of 500nA (typ)
- ±0.15LSB INL (typ), ±0.15LSB DNL (typ)
Applications
Power Management, Signal Processing
- :
- -40°C
- :
- 32
- :
- 85°C
- :
- I2C
- :
- 6Pins
- :
- ± 25%
- :
- Single
- :
- Single 32-Tap Non-Volatile Digital Pots
- :
- -
- :
- Linear
- :
- 50kohm
- :
- 35ppm/°C
- :
- 2.7V
- :
- Cut Tape
- :
- 5.25V
- :
- TSOT-23
- :
- MSL 1 - Unlimited
Product details
| Operating Temperature Min | -40°C |
| No. of Steps | 32 |
| Operating Temperature Max | 85°C |
| Control Interface | I2C |
| No. of Pins | 6Pins |
| Resistance Tolerance | ± 25% |
| No. of Pots | Single |
| Product Range | Single 32-Tap Non-Volatile Digital Pots |
| Automotive Qualification Standard | - |
| Track Taper | Linear |
| End To End Resistance | 50kohm |
| Temperature Coefficient | 35ppm/°C |
| Supply Voltage Min | 2.7V |
| Packaging | Cut Tape |
| Supply Voltage Max | 5.25V |
| Potentiometer IC Case Style | TSOT-23 |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX5434LEZT+T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

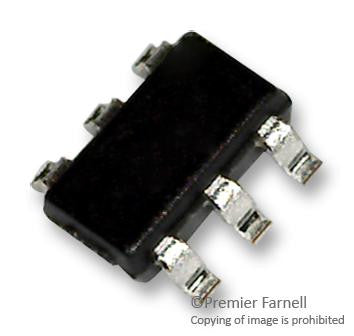

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
