Description
The MAX5400EKA+T is a 256-tap SOT-PoT low-drift digital potentiometer in 8 pin SOT-23 package. This volatile digital potentiometer includes a fixed resistor string with a digitally controlled wiper contact. It provides glitchless switching between resistor taps as well as a convenient power-on reset that sets the wiper to the midscale (position-128) at power-up. MAX5400 serves well in applications requiring digitally controlled resistors including adjustable voltage references and programmable gain amplifiers (PGAs).
- Supply voltage range is 2.7V to 5.5V
- Operating temperature range from -40°C to 85°C
- Ultra-low supply current of 0.1µA
- 3-wire SPI compatible interface
- End to end resistance is 50Kohm at ±25% tolerance and temperature coefficient is 50ppm/°C
- Ratiometric resistance temperature coefficient is 5ppm/°C
Applications
Power Management, Communications & Networking, Portable Devices
- :
- -40°C
- :
- 256
- :
- 85°C
- :
- SPI
- :
- 8Pins
- :
- ± 25%
- :
- Single
- :
- Single 256-Tap Volatile Digital Pots
- :
- -
- :
- Linear
- :
- 50kohm
- :
- 50ppm/°C
- :
- 2.7V
- :
- Cut Tape
- :
- 5.5V
- :
- SOT-23
- :
- MSL 1 - Unlimited
Product details
| Operating Temperature Min | -40°C |
| No. of Steps | 256 |
| Operating Temperature Max | 85°C |
| Control Interface | SPI |
| No. of Pins | 8Pins |
| Resistance Tolerance | ± 25% |
| No. of Pots | Single |
| Product Range | Single 256-Tap Volatile Digital Pots |
| Automotive Qualification Standard | - |
| Track Taper | Linear |
| End To End Resistance | 50kohm |
| Temperature Coefficient | 50ppm/°C |
| Supply Voltage Min | 2.7V |
| Packaging | Cut Tape |
| Supply Voltage Max | 5.5V |
| Potentiometer IC Case Style | SOT-23 |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | MAX5400EKA+T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

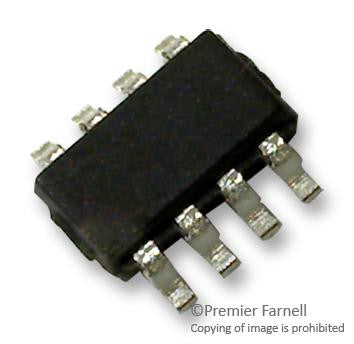

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 368.15 |
| 3-5 | ₹ 364.39 |
| 5-10 | ₹ 356.88 |
| 10+ | ₹ 349.36 |
Bulk discount will be automatically applied during checkout based on quantity.
