| ₹ 1220.51 includes GST and import duties. | |
| B2B customers can avail ₹ 186.13 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

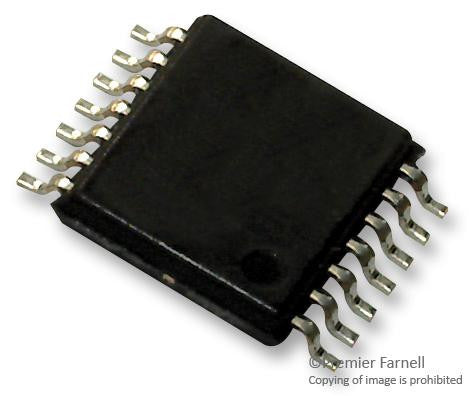

The DS1807E+ is an addressable dual audio taper potentiometer in 14 pin TSSOP package. The device includes dual audio taper potentiometer having a logarithmic resistive characteristic (1dB per step). Each potentiometer has a total of 65 wiper positions including the mute position. Adjacent wiper positions are separated by 1 dB giving a total attenuation range of 64 dB. When the wipers are in the mute position, attenuation in excess of 90 dB is achieved. The DS1807 is controlled via a two-input serial synchronous interface that provides the capability of addressing up to eight different DS1807s. Addressability is obtained via communication protocol and three address select inputs A0, A1 and A2. Communication protocol allows for independent or simultaneous setting of the two potentiometer wipers. It replaces mechanical potentiometers with digital accuracy and reliability while its low-power circuits consume very little current.
- Supply voltage range is 2.7V to 5.5V
- Operating temperature range from -40°C to 85°C
- 2-wire addressable control interface
- High performance audio volume and tone control with processor addressability
- Zero-crossing detection eliminates zipper noise caused by discrete wiper changes
- Data transfer in regular mode (100KHz clock rate) and fast mode (400KHz clock rate)
- End to end resistance is 45Kohm at ± 20% tolerance and temperature coefficient is 750ppm/°C
Applications
Power Management
- :
- -40°C
- :
- 65
- :
- 85°C
- :
- Serial
- :
- 14Pins
- :
- ± 20%
- :
- Dual
- :
- Dual 64-Tap Volatile Digital Pots
- :
- -
- :
- Log (Audio)
- :
- 45kohm
- :
- 750ppm/°C
- :
- 2.7V
- :
- Each
- :
- 5.5V
- :
- TSSOP
- :
- MSL 1 - Unlimited
Product details
| Operating Temperature Min | -40°C |
| No. of Steps | 65 |
| Operating Temperature Max | 85°C |
| Control Interface | Serial |
| No. of Pins | 14Pins |
| Resistance Tolerance | ± 20% |
| No. of Pots | Dual |
| Product Range | Dual 64-Tap Volatile Digital Pots |
| Automotive Qualification Standard | - |
| Track Taper | Log (Audio) |
| End To End Resistance | 45kohm |
| Temperature Coefficient | 750ppm/°C |
| Supply Voltage Min | 2.7V |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| Potentiometer IC Case Style | TSSOP |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | MAXIM INTEGRATED PRODUCTS |
| Part Number | DS1807E+ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1196.1 |
| 3-5 | ₹ 1183.89 |
| 5-10 | ₹ 1159.48 |
| 10+ | ₹ 1135.07 |
Bulk discount will be automatically applied during checkout based on quantity.
