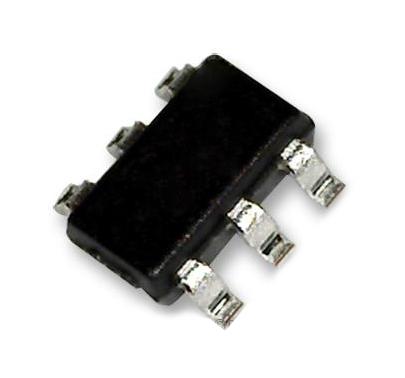

ANALOG DEVICES MAX5161MEZT+T Volatile Digital Potentiometer, 100 kohm, Single, Serial, Linear, ± 25%, 2.7 V

The MAX5161MEZT+T is a low-power digital potentiometer in 6 pin SOT23 package. It is a linear-taper digital potentiometer that performs the same function as a mechanical potentiometer or a variable resistor. It consists of a fixed resistor and a wiper contact with 32 tap points that are digitally controlled by two lines for the 6-pin MAX5161. It is an ideal for applications requiring digitally controlled resistors. A nominal resistor temperature coefficient of 50ppm/°C end-to-end and only 5ppm/°C ratiometric makes the MAX5161 ideal for applications requiring a low-temperature- coefficient variable resistor, such as low-tempco, adjustable-gain circuit configurations. Typical applications include LCD screen adjustment, volume control and mechanical potentiometer replacement.

• Supply voltage range from 2.7V to 5.5V
• End-to-end resistance is 100Kohm,Wiper resistance is 400 ohm
• Resistance tolerance is ±25%
• 3 wire serial data input
• ±1LSB DNL and ±0.5LSB INL
• Supply current is 100nA
• Power-on reset when wiper goes to midscale (position 16)
• ESD protection is ±2KV
• Glitchless switching between the resistor taps
• Operating temperature range from -40°C to +85°C
