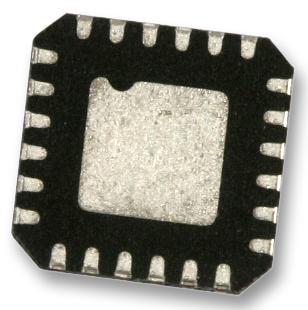

ANALOG DEVICES AD5124BCPZ10-RL7 Non Volatile Digital Potentiometer, 10 kohm, Quad, I2C, SPI, Linear / Logarithmic, ± 8%, 2.3 V

AD5124BCPZ10-RL7 is a quad channel, 128-position, I²C/SPI, non-volatile digital potentiometer. The low resistor tolerance and low nominal temperature coefficient simplify open-loop applications as well as applications requiring tolerance matching. The linear gain setting mode allows independent programming of the resistance between the digital potentiometer terminals, through the RAW and RWB string resistors, allowing very accurate resistor matching. The high bandwidth and low total harmonic distortion (THD) ensure optimal performance for AC signals, making this device suitable for filter design. The low wiper resistance of only 40 ohm at the ends of the resistor array allows for pin-to-pin connection. It is used in applications such as portable electronics level adjustment, LCD panel brightness and contrast controls, programmable filters, delays, and time constants, and programmable power supplies.

• Linear gain setting mode, single- and dual-supply operation
• Independent logic supply voltage range from 1.8V to 5.5V
• Resistor integral nonlinearity is ±0.1LSB typical at (RAB = 10Kohm, VDD ? 2.7V)
• Resistor differential nonlinearity is ±0.1LSB typical at (VDD = 2.3V to 5.5V, VSS = 0V)
• Resistance temperature coefficient is 35ppm/°C typ at (code = full scale, VDD = 2.3V to 5.5V)
• 3MHz typical -3dB bandwidth at (RAB = 10Kohm, VDD = 2.3V to 5.5V, VSS = 0V)
• VW settling time is 2µs typical at (RAB = 10Kohm, VDD = 2.3V to 5.5V, VSS = 0V)
• Nominal resistor tolerance is ±1% typical at (VDD = 2.3V to 5.5V, VSS = 0V; VDD = 2.25V to 2.75V)
• Resistor noise density is 7nV/?Hz typical at (RAB = 10Kohm, VDD = 2.3V to 5.5V, VSS = 0V)
• Operating temperature range from -40°C to +125°C, 24-lead LFCSP package
