Description
Atlas Lens Co. Orion Anamorphic 100mm T2.0 (f... Overview
- 1Description
- 22x Vintage Anamorphic Look
- 3Interchangeable EF/PL Mount
- 4Super 35 Coverage
- 5Fast T2 Aperture
- 6Standardized Design
- 7Wide Barrel Rotation
- 8Adjustable Focus Scales

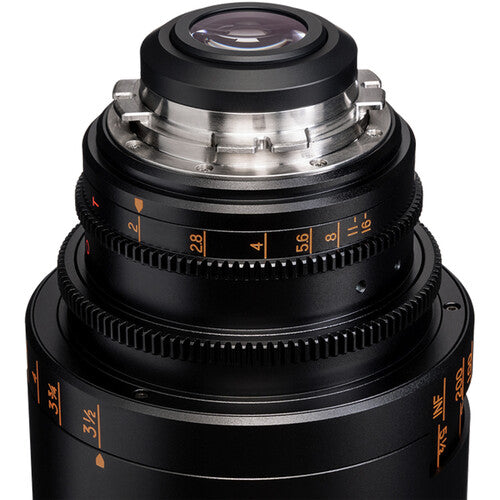

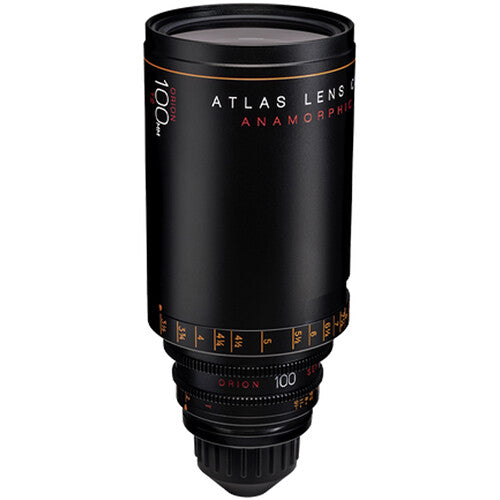

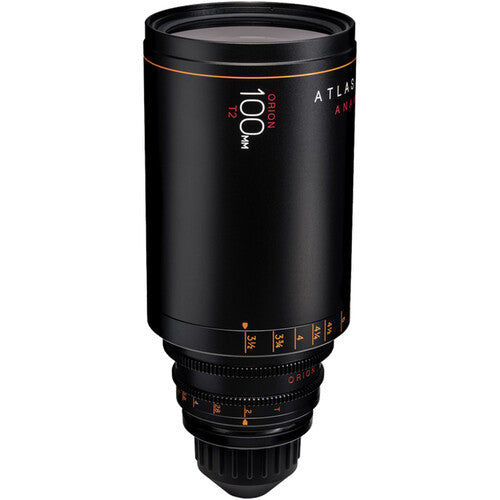

Designed by cinematographers for cinematographers, the Orion 100mm T2 2x Anamorphic Prime Lens from Atlas Lens Co. produces a vintage anamorphic look for Super 35-sensor cine-style cameras. The 100mm creates a wide-angle field of view with the shallow depth of field found in a telephoto prime. To maximize compatibility, this PL-mount lens can be switched to a Canon EF mount using a separately available Atlas EF mount kit. Anamorphic lens characteristics include "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.
This mechanically dependable prime lens features a design that is standardized across the series with unified focus and iris gear positions and a common 114mm front diameter that make lens swaps easier when using cine-style matte boxes and FIZ systems. The Orion 100mm prime comes with focus marks in feet but can be switched by the used to meters using a separately available focus scale.
- Creates twice the horizontal field with the same vertical field of view as a similar spherical lens.
- Creates a wide-angle view with the shallow depth of field inherent to telephoto prime.
- Use this Orion series lens to create a vintage anamorphic look replete with "waterfall" bokeh, streak effects, and a spherical aberration glow when used wide open.
- Compatible with ARRI PL-mount cameras or with Canon EF-mount cameras when used with the separately available mount kit.
- Works with Sony E-mount or Micro Four Thirds cameras using separately available adapters.
- It covers up to Super 35-format camera sensors.
- Use with the separately available Atlas 1.6x LF extender for full-frame coverage.
- A fast T2 aperture enables low-light capture.
- Stopping down to T2.8 or less produces a crisp, flat-field look.
- The mechanically dependable design is standardized across the series for reliable performance.
- Unified focus and iris gear positions reduce the need for adjustment when switching lenses on your rig.
- The standardized 114mm front diameter is compatible with many filters and matte boxes.
- Custom support feet are available separately.

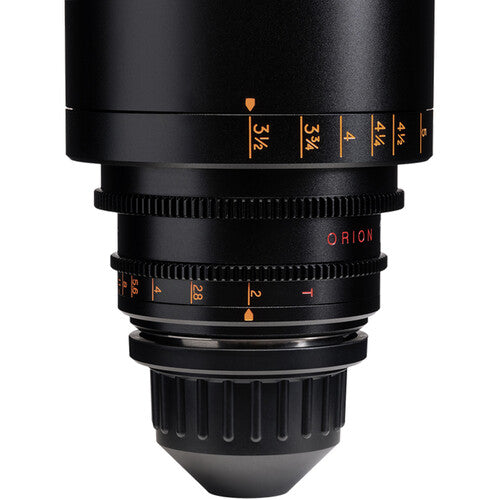

- The 270° of focus barrel rotation enables smooth, precise focus pulls.
- The focus scales are adjustable in the field for maximum accuracy.
- Focus scales in feet can be replaced by the user with those in meters and vice versa.

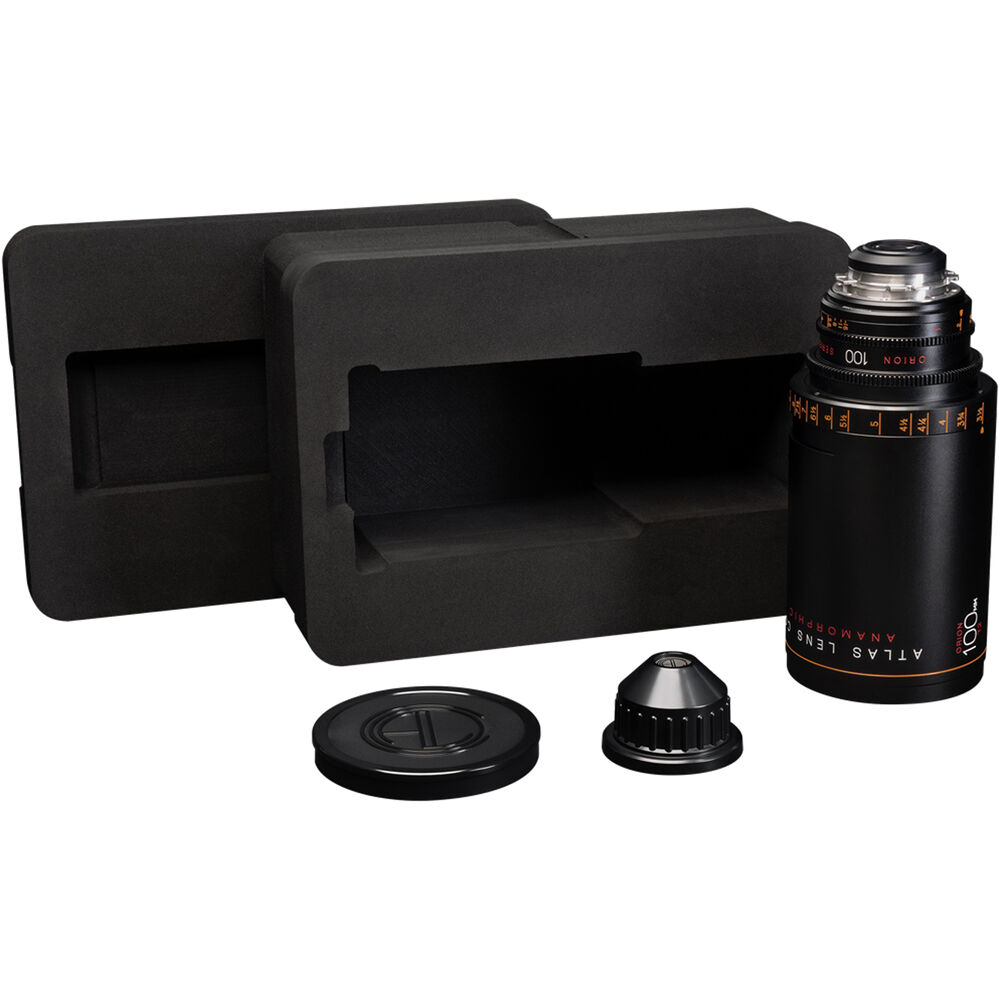

In the Box
- Atlas Lens Co. Orion 100mm T2 2x Anamorphic Prime Lens (PL Mount, Feet)
- Limited 1-Year Manufacturer Warranty
- Description
- 2x Vintage Anamorphic Look
- Interchangeable EF/PL Mount
- Super 35 Coverage
- Fast T2 Aperture
- Standardized Design
- Wide Barrel Rotation
- Adjustable Focus Scales
Atlas Lens Co. Orion Anamorphic 100mm T2.0 (f... Specs
| Focal Length |
100mm
|
| Maximum Aperture |
T2
|
| Minimum Aperture |
T16
|
| Lens Mount |
ARRI PL
|
| Horizontal Squeeze (Anamorphic) |
2x
|
| Lens Format Coverage |
Super35/APS-C (24.89 x 18.66 mm
|
| Image Circle |
31.0 mm
|
| Focus Scales |
Imperial
|
| Filter Thread |
105 mm
|
| Minimum Focus Distance |
From Unspecified Point in Lens: 3.5' / 1.1 m
|
| Diaphragm Blades |
14
|
| Image Stabilization |
No
|
| Electronic Communication |
No
|
| Weight |
6.7 lb / 3 kg
|
| Package Weight |
9.6 lb
|
| Box Dimensions (LxWxH) |
14.8 x 10.3 x 7.3"
|
