Description

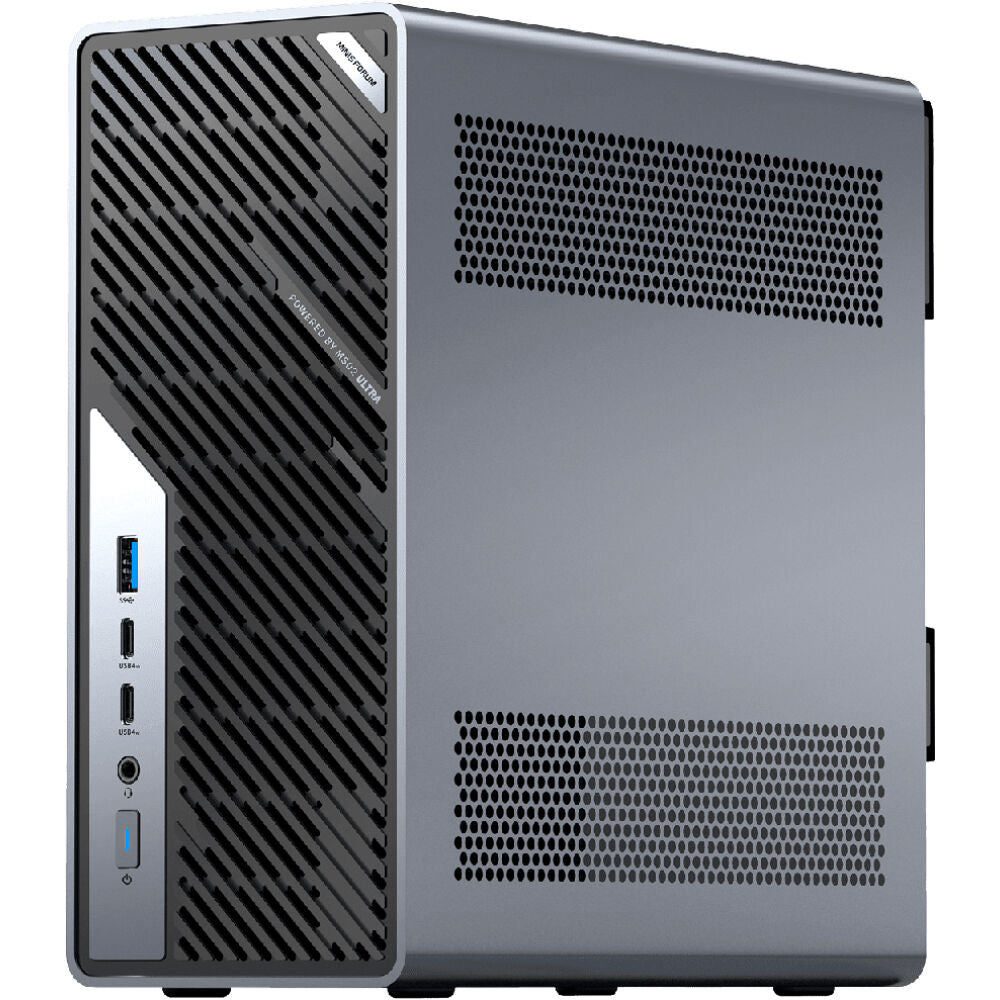

Designed for AI developers, creative professionals, and enthusiasts, the MS-02 Ultra Desktop Workstation from MINISFORUM packs immense power into a compact form factor. Inside is an Intel Core Ultra 5 235HX Series 2 processor with 32GB of DDR5-5200 memory and a 1TB M.2 SSD that allows you to smoothly load and multitask applications.

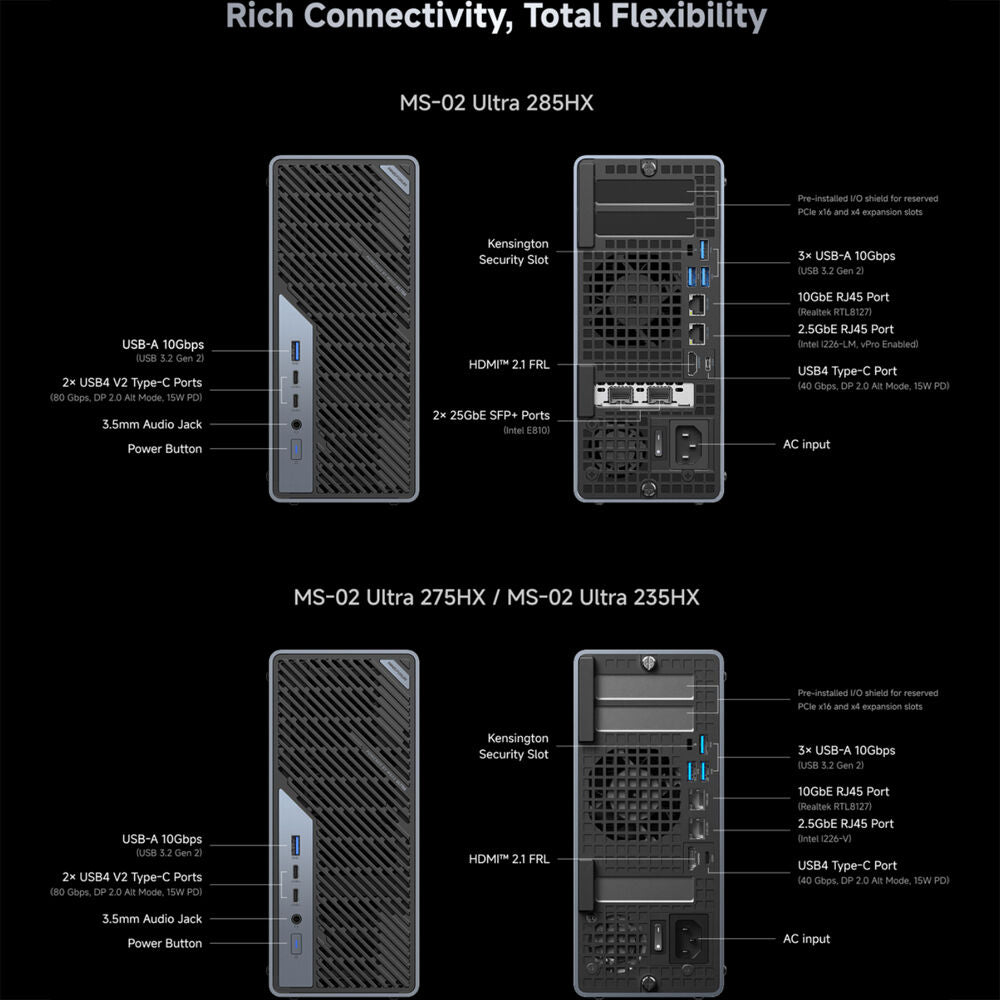

The MS-02 Ultra also provides high-speed connectivity with a 40 Gb/s compatible USB4 port alongside two USB4 V2 ports that can transfer up to 80 Gb/s with compatible devices. Connect high resolution displays to the USB4 ports and the HDMI 2.1 port for a multi-monitor workflow. Four USB-A 3.2 Gen 2 ports are available for up to 10 Gb/s devices. Dual 25 Gb/s SFP+ ports can transfer up to 3.1 GB/s with compatible fiber network devices. You can also connect to Wi-Fi 7 (802.11be) networks or use the 10 Gb/s and 2.5 Gb/s RJ45 Ethernet ports for reliable wired links. You can pair the system with a separately purchased Bluetooth keyboard and mouse set. Windows 11 Pro is preinstalled.
| Operating System | Windows 11 Pro |
| Processor | Intel Core Ultra 5 235HX |
| GPU | Intel Graphics |
| Installed RAM | 32 GB |
| Total Capacity | 1 TB |
| External Bays | No |
| Inputs/Outputs | 1x USB-C (USB4) 2x USB-C (USB4 v2) 4x USB-A 3.1/3.2 Gen 2 |
| Display I/O | 1x HDMI 2.1 |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Wi-Fi | Wi-Fi 7 (802.11be) |
| Bluetooth | Bluetooth 5.4 |
| Keyboard | No |
| Pointing Device | No |
| Power Supply | 350 W with IEC |
| Operating System | Windows 11 Pro |
| Processor | Intel Core Ultra 5 235HX |
| CPU Socket | BGA 2114 |
| CPU | 14-Core: 2.9 to 5.1 GHz Performance (6 Cores) 2.6 to 4.5 GHz Efficiency (8 Cores) |
| Dedicated AI Cores | Yes: 13 TOPS |
| L3 Cache | 24 MB |
| GPU | Intel Graphics |
| Installed RAM | 32 GB |
| RAM Type | DDR5 |
| RAM Configuration / Capacity | 2x User-Replaceable 16 GB Module / 4 Slots Supporting up to 256 GB (SO-DIMM) |
| vPro Support | Yes |
| Total Capacity | 1 TB |
| Storage Drive Type | 1x 1 TB / M.2 NVMe SSD |
| Storage Expansion | 1x M.2 Slot 2280 (PCIe 4.0 x4) [Occupied] 3x M.2 Slot 2280 (PCIe 4.0 x4) [Available] |
| PCI Expansion | 1x PCIe 5.0 x16 (Available) 1x PCIe 4.0 x16 (Occupied) 1x PCIe 4.0 x1 (Available) |
| Optical Drive | No |
| External Bays | No |

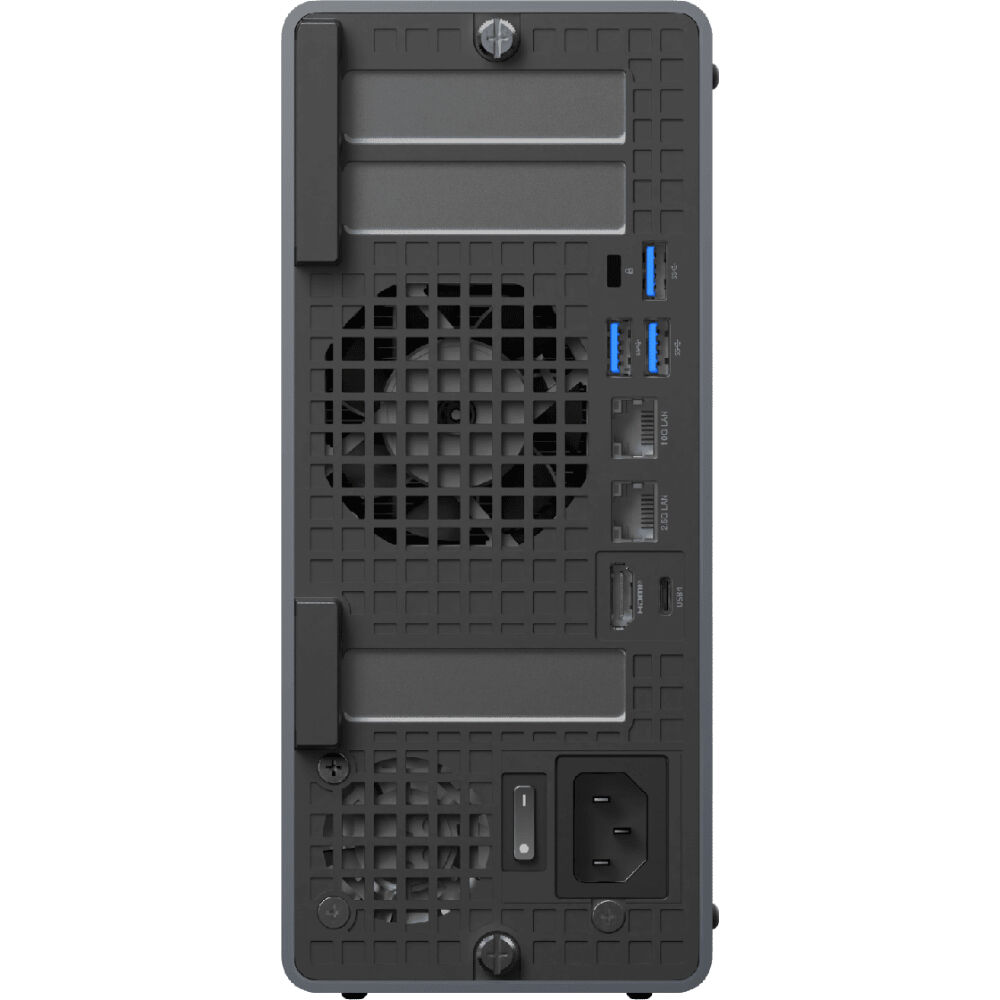

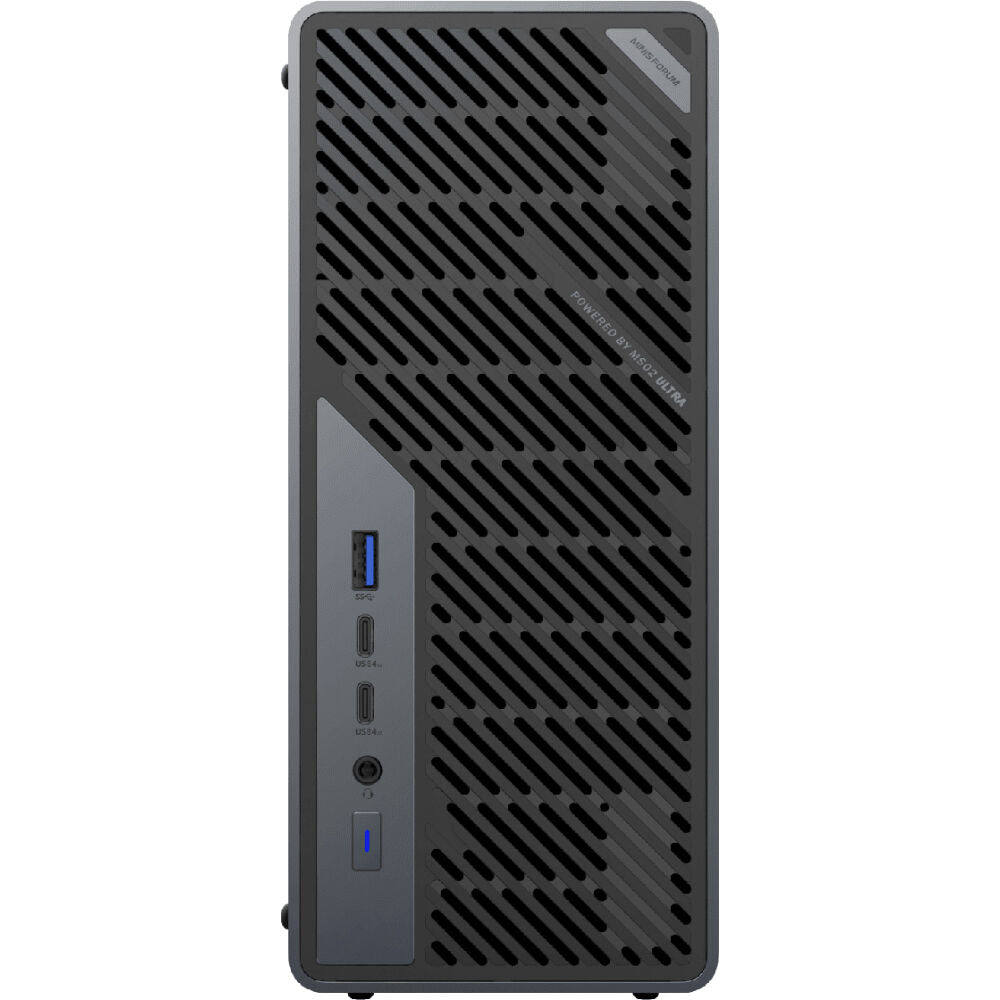

| Inputs/Outputs | 1x USB-C (USB4) / Supports Power Delivery (15 W) 2x USB-C (USB4 v2) / Supports Power Delivery (15 W) 4x USB-A 3.1/3.2 Gen 2 |
| Display I/O | 1x HDMI 2.1 |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Network I/O | 2x SFP+ (25 GbE) 1x RJ45 (10 GbE) 1x RJ45 (2.5 GbE) |
| Built-In Speakers | No |
| Built-In Microphones | No |
| Media/Memory Card Slot | No |
| Wi-Fi | Wi-Fi 7 (802.11be): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support |
| Bluetooth | Bluetooth 5.4 |
| Keyboard | No |
| Pointing Device | No |
| Security | Dedicated Hardware TPM Security Chip, Kensington Lock Slot |
| Power Supply | 350 W with IEC |
| Input Power | 100 to 240 VAC, 50 / 60 Hz at 6 A |
| Weight | 7.61 lb / 3.45 kg |
| Package Weight | 9.685 lb |
| Box Dimensions (LxWxH) | 13.2 x 8.6 x 6.4" |
