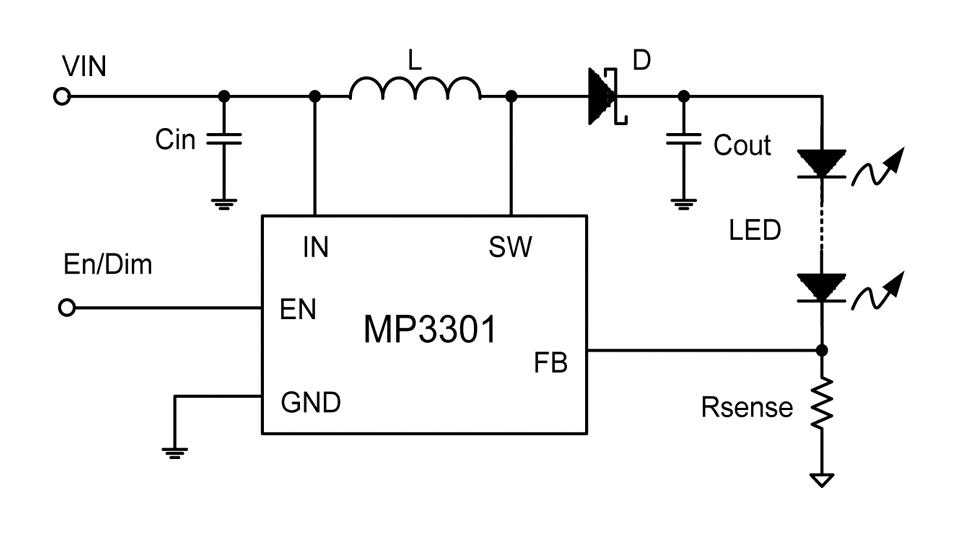

- Fixed frequency step-up driver for up to 10 white LEDS in 5 pin TSOT-23 package
- Internal power MOSFET
- Drives up to 10 white LEDs in series
- Up to 89% efficiency
- PWM and analogue dimming
- Low 200mV feedback voltage
- Internal 700mA current limit
- Open load shutdown
- Undervoltage lockout, current limiting and thermal overload protection
Product details
| Device Topology |
Boost (Step Up) |
| Input Voltage Min |
2.5V |
| Input Voltage Max |
6V |
| Output Voltage Max |
36V |
| Output Current Max |
700mA |
| Switching Frequency |
1.3MHz |
| No. of Outputs |
1Outputs |
| IC Mounting |
SMD |
| Driver Case Style |

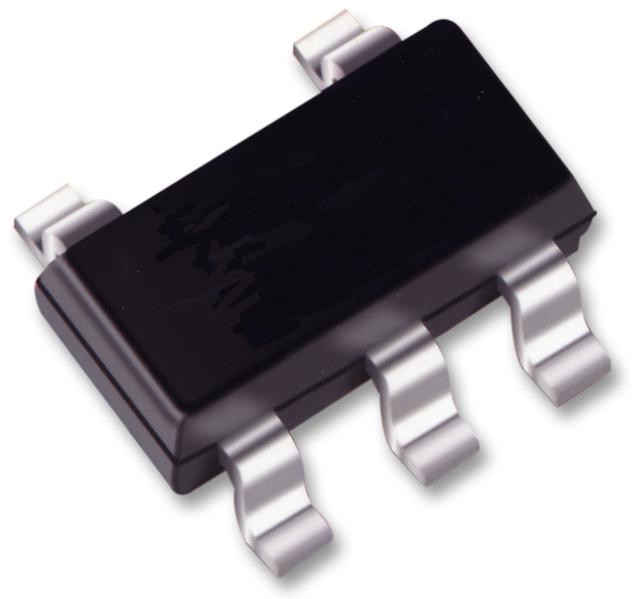

TSOT-23 |
| No. of Pins |
5Pins |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
125°C |
| Product Range |
- |
| Automotive Qualification Standard |
- |
Other details
| Brand |
MONOLITHIC POWER SYSTEMS (MPS) |
| Part Number |
MP3301GJ-P |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
