Description

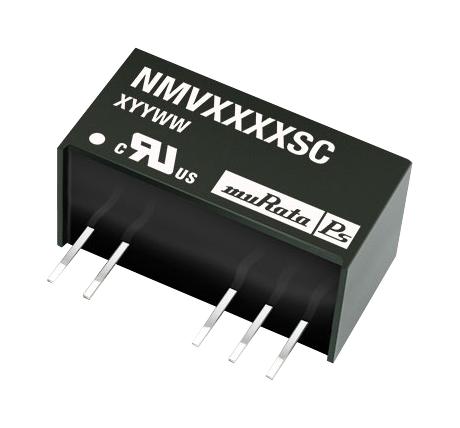

The NMV0512SC is a 2-output 1W board-mount isolated DC/DC Converter for on-board distributed power systems. It is ideally suited for providing local supplies on control system boards with the added benefit of 3kVDC galvanic isolation to reduce switching noise. The rated power may be drawn from a single pin provided the total load does not exceed 1W.
- No heat sink required
- Industry standard pin-out
- Power sharing on dual output
- Fully encapsulated with toroidal magnetics
- No external components required
- No electrolytic or tantalum capacitors
- 3kVDC isolation (1 minute) hi-pot test
- Power density up to 0.85W/cm³
- Footprint from 1.17cm²
- 7.5% Maximum load regulation
- 8mVp-p Maximum ripple and noise
- 78% Efficiency
- 26pF Isolation capacitance
Power Management, Industrial
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | NMV0512SC |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| CAD Multiple Formats EN | |
| 3D Product Image EN | |
