Description

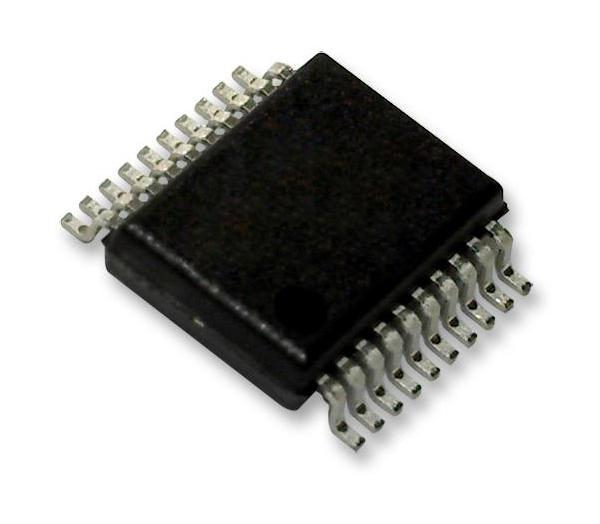

The ADS1255IDBT is a 24-bit Analogue-to-digital Converter provides complete high-resolution measurement solutions for the most demanding applications. The converter is comprised of a 4th-order, delta-sigma modulator followed by a programmable digital filter. A flexible input multiplexer handles differential or single-ended signals and includes circuitry to verify the integrity of the external sensor connected to the inputs. The selectable input buffer greatly increases the input impedance and the low-noise programmable gain amplifier provides gains from 1 to 64 in binary steps. The programmable filter allows the user to optimize between resolution of up to 23-bit noise-free and data rate of up to 30kSPS. This low noise converter offers fast channel cycling for measuring multiplexed inputs and can also perform one-shot conversions that settle in just a single cycle. Communication is handled over an SPI-compatible serial interface that can operate with a 2-wire connection.
- All data rates and PGA settings
- ±0.0010% Maximum nonlinearity
- Fast channel cycling
- One-shot conversions with single-cycle settling
- Flexible input multiplexer with sensor detect
- Chopper-stabilized input buffer
- 27nV Input-referred noise
- Self and system calibration for all PGA settings
- 0.4mW In-standby mode
- Green product and no Sb/Br
Applications
Industrial, Medical
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Resolution (Bits): 24bit |
| Sampling Rate: 30kSPS |
| Input Channel Type: Differential, Single Ended |
| Data Interface: Serial, SPI |
| Supply Voltage Type: Single |
| Supply Voltage Min: 4.75V |
| Supply Voltage Max: 5.25V |
| ADC / DAC Case Style: SSOP |
| No. of Pins: 20Pins |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: Dual 24-Bit Sigma-Delta ADCs |
| Automotive Qualification Standard: - |
| MSL: MSL 2 - 1 year |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | ADS1255IDBT |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
