Maxim Integrated / Analog Devices MAX1229BEEP+ MAX1229BEEP+ Analogue to Digital Converter 12 bit 300 Ksps Differential Single Ended SPI 2.7 V

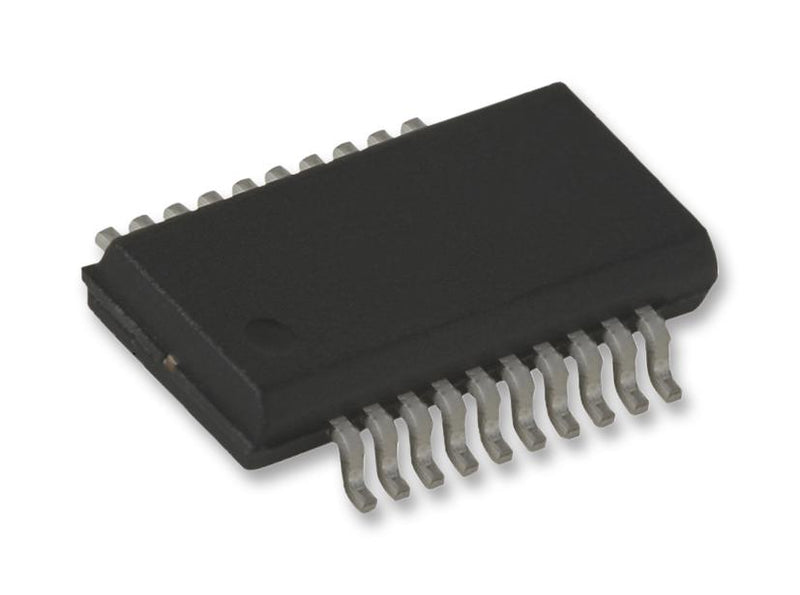

The MAX1229BEEP+ is a 12bit 300Ksps analogue to digital converter (ADC) with FIFO, temperature sensor, internal reference in 20 pin QSOP package. The low power, serial output, multichannel ADC with temperature sensing capability for temperature control, process control and monitoring applications. This ADC utilizes a fully differential, successive approximation register (SAR) conversion technique and an on-chip T/H block to convert temperature and voltage signals into a 12bit digital result. Both single ended and differential configurations are supported with a unipolar signal range for single ended mode and bipolar or unipolar ranges for differential mode. It feature an on-chip FIFO, scan mode, internal clock mode, internal averaging and AutoShutdown function.

• Supply voltage range is 2.7V to 3.6V
• Operating temperature range from -40°C to 85°C
• 12 input channel
• Internal temperature sensor with ±0.7°C accuracy
• Accuracy of ±1 LSB INL, ±1 LSB DNL, no missing codes overtemperature
• Low power of 1mA at 300Ksps and single +3V operation
• Internal 2.5V reference or external differential reference
• 10MHz 3 wire SPI/QSPI/MICROWIRE compatible interface

Applications

Signal Processing, Industrial, Sensing & Instrumentation

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MAXIM INTEGRATED / ANALOG DEVICES
Part Number	MAX1229BEEP+
Quantity	Each
Technical Data Sheet EN
