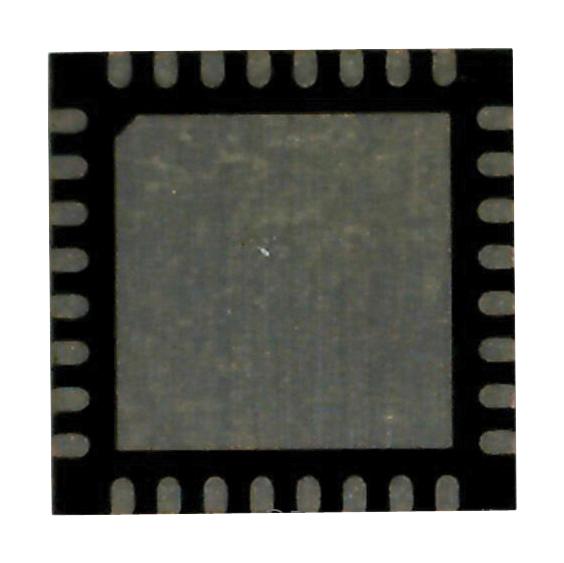

ANALOG DEVICES LTC2666HUH-16#PBF Digital to Analogue Converter, 16 bit, SPI, 4.5V to 5.5V, ± 4.75V to ± 15.75V, QFN, 32 Pins

LTC2666HUH-16#PBF is an 8-channel, 16bit, ±10V digital-to-analogue converter with 10ppm/°C max integrated precision reference. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan� DACs offer five output ranges up to ±10V. The range of each channel is independently programmable, or the part can be hardware-configured for operation in a fixed range. The LTC2666 also includes A/B toggle capability via a dedicated pin or software toggle command. The SPI/Microwire-compatible 3-wire serial interface operates on logic levels as low as 1.71V at clock rates up to 50MHz. Applications include optical networking, instrumentation, data acquisition, automatic test equipment, process control, and industrial automation.

• Guaranteed monotonic over temperature, A/B toggle via software or dedicated pin
• Outputs drive ±10mA guaranteed, 1.8V to 5V SPI serial interface
• 8:1 analogue multiplexer, 16bit resolution
• Integral nonlinearity is ±2.2LSB typical at (TA = 25°C, VCC = 5V, IOVCC = 5V)
• Unipolar offset error is ±1mV typical at (0V to 5V range, TA = 25°C, VCC = 5V)
• Gain error is ±0.02%FSR typical at (TA = 25°C, VCC = 5V, IOVCC = 5V)
• Load regulation is 78µV/mA typical at (-10mA ? IOUT ? 10mA)
• Voltage output slew rate is 5V/µs typical at (TA = 25°C, VCC = 5V, IOVCC = 5V)
• VCC supply current is 2.8mA typical at (VCC = 5V, unipolar ranges)
• Operating temperature range from -40°C to 125°C, 32-lead QFN package
