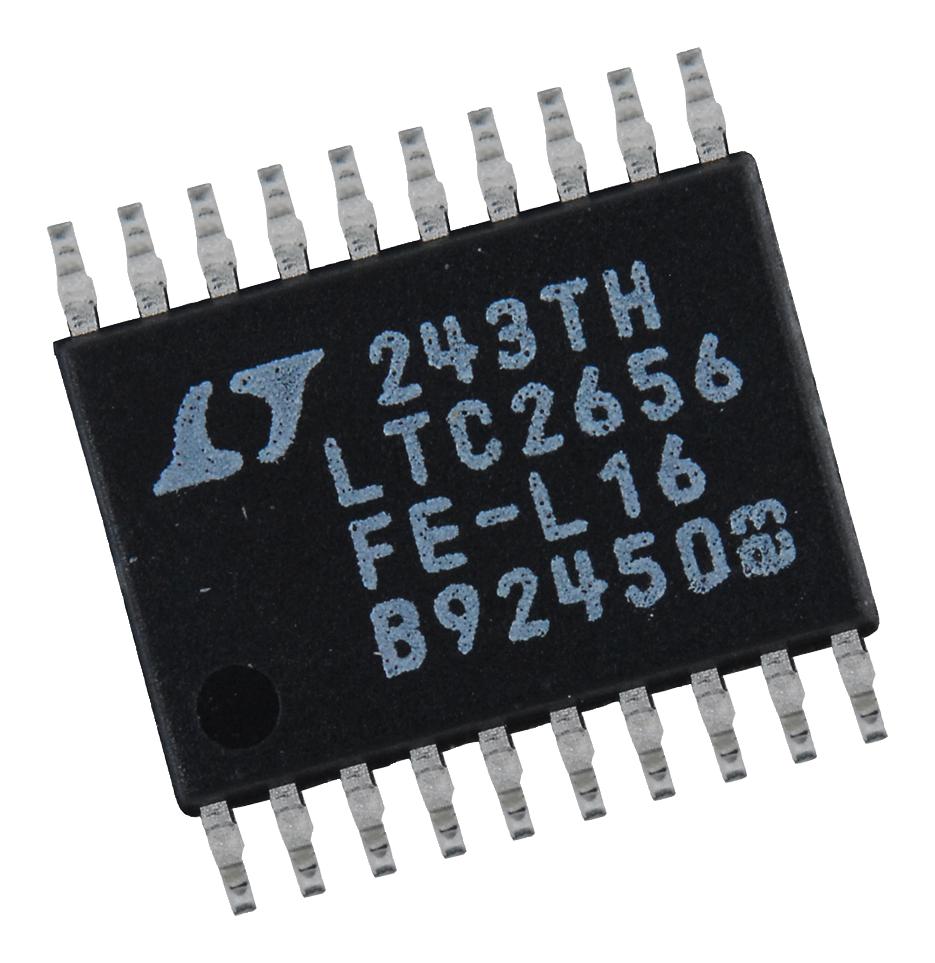

ANALOG DEVICES LTC2656BIFE-L16#PBF Digital to Analogue Converter, 16 bit, SPI, 2.7V to 5.5V, TSSOP, 20 Pins

LTC2656BIFE-L16#PBF is a 16bit, rail-to-rail DAC with a precision integrated reference. LTC2656-L has built-in high-performance, rail-to-rail, and output buffers and is guaranteed monotonic. LTC2656-L has a full-scale output of 2.5V with the integrated 10ppm/°C reference and operates from a single 2.7V to 5.5V supply. These DACs can also operate with an external reference, which sets the DAC full-scale output to two times the external reference voltage. This DAC communicates via a SPI/MICROWIRE� compatible 4-wire serial interface which operates at clock rates up to 50MHz. It incorporates a power-on reset circuit that is controlled by the PORSEL pin. If PORSEL is tied to GND the DACs reset to zero-scale. If PORSEL is tied to VCC, the DACs reset to mid-scale. Applications include mobile communications, process control and industrial automation, instrumentation, automatic test equipment, and automotive.

• 2.5V full scale voltage, internal reference mode, 16bit resolution
• Asynchronous LDAC update pin, integrated reference buffers
• Supply voltage range from 2.7V to 5.5V, guaranteed monotonic over temperature
• Differential nonlinearity is ±1LSB maximum at (TA = 25°C, VCC = 2.7V to 5.5V)
• Integral nonlinearity is ±2LSB typical at (VCC = 5.5V, VREF = 2.5V)
• Gain error is ±0.1%FSR maximum at (VCC = 5.5V, VREF = 2.5V)
• Supply current in shutdown mode is 3µA maximum at (VCC = 5V, TA = 25°C)
• Voltage output slew rate is 1.8V/µs typical at (TA = 25°C, VCC = 2.7V to 5.5V)
• Multiplying bandwidth is 150KHz typical at (TA = 25°C, VCC = 2.7V to 5.5V)
• Industrial temperature range from -40°C to 85°C, 20-lead TSSOP package
