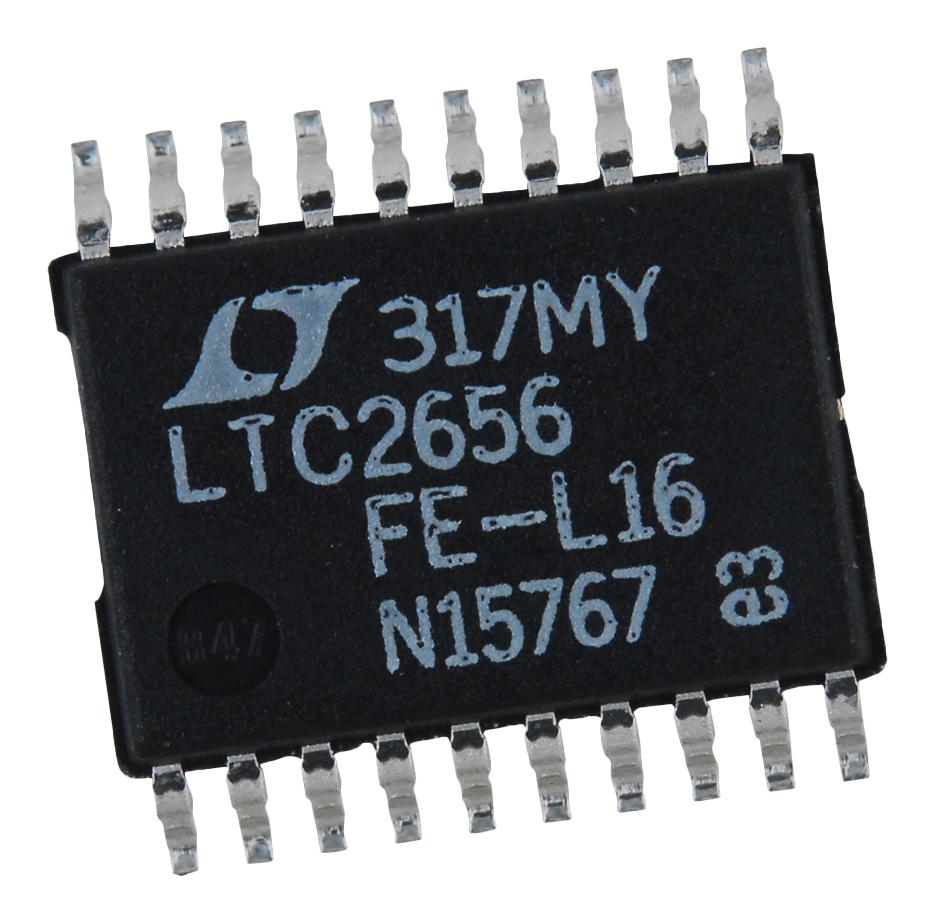

ANALOG DEVICES LTC2656BCFE-L16#PBF Digital to Analogue Converter, 16 bit, SPI, 2.7V to 5.5V, TSSOP, 20 Pins

LTC2656BCFE-L16#PBF is an octal 16bit rail-to-rail DAC. The DACs have built-in high-performance, rail-to-rail, output buffers and are guaranteed monotonic. The LTC2656-L has a full-scale output of 2.5V with the integrated 10ppm/°C reference and operates from a single 2.7V to 5.5V supply. These DACs communicate via a SPI/MICROWIRE� compatible 4-wire serial interface which operates at clock rates up to 50MHz. The LTC2656 incorporates a power-on reset circuit that is controlled by the PORSEL pin. If PORSEL is tied to GND the DACs reset to zero-scale. If PORSEL is tied to VCC, the DACs reset to mid-scale. Applications include mobile communications, process control and industrial automation, instrumentation, automatic test equipment, and automotive.

• Guaranteed monotonic over temperature, asynchronous LDAC update pin
• Integrated reference buffers, 2.7V to 5.5V supply range
• Integral nonlinearity is ±2LSB typical at (VCC = 5.5V, VREF = 2.5V)
• Offset error is 1mV typical at (TA = 25°C. VCC = 2.7V to 5.5V)
• Gain error is ±0.02%FSR typical at (TA = 25°C. VCC = 2.7V to 5.5V)
• Supply current is 3.1mA typical at (VCC = 5V, internal reference on)
• Voltage output slew rate is 1.8V/µs typical at (TA = 25°C, VCC = 2.7V to 5.5V)
• Multiplying bandwidth is 150KHz typical at (TA = 25°C, VCC = 2.7V to 5.5V)
• Output voltage noise density is 85nV/?Hz typical at (f = 1KHz, TA = 25°C, VCC = 2.7V to 5.5V)
• Commercial temperature range from 0°C to 70°C, 20-lead thermally enhanced TSSOP package
