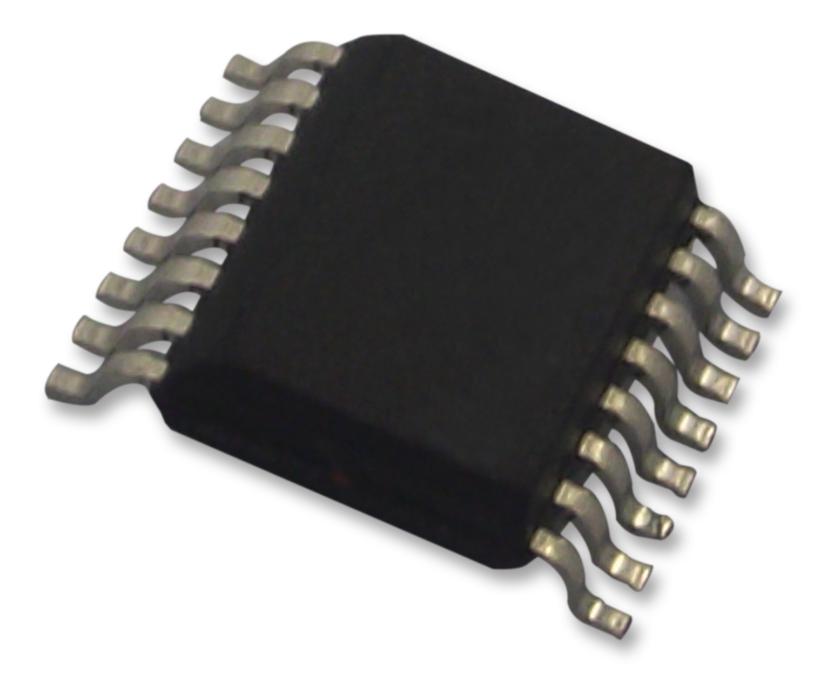

ANALOG DEVICES LTC2654BCGN-H16#PBF Digital to Analogue Converter, 16 bit, 4 Wire, Microwire, Serial, SPI, 2.7V to 5.5V, NSSOP

LTC®2654 is a family of quad 16bit rail-to-rail DAC with integrated 10ppm/°C maximum reference. The DAC have built-in high performance, rail-to-rail, output buffer and is guaranteed monotonic. The LTC2654-H has a full-scale output of 4.096V with the integrated reference and operates from a 4.5V to 5.5V supply. Each DAC can also operate with an external reference, which sets the full-scale output to 2 times the external reference voltage. This DAC communicates via a SPI/MICROWIRE compatible 4-wire serial interface which operates at clock rates up to 50MHz. The LTC2654 incorporates a power-on reset circuit that is controlled by the PORSEL pin. If PORSEL is tied to GND the DACs reset to zero-scale. If PORSEL is tied to VCC, the DACs reset to mid-scale. Typical applications include mobile communications, process control and industrial automation, instrumentation, automatic test equipment, and automotive.

• Maximum INL error is ±4LSB at 16bits
• Low ±2mV (max) offset error
• Guaranteed monotonic over temperature
• Integrated reference buffers
• Ultralow crosstalk between DACs (<lt/>3nV�s)
• Power-on-reset to zero-scale/mid-scale
• Asynchronous DAC update pin
• ±0.1%FSR max gain error
• 16 lead NSSOP package
• Operating temperature range from 0°C to 70°C
