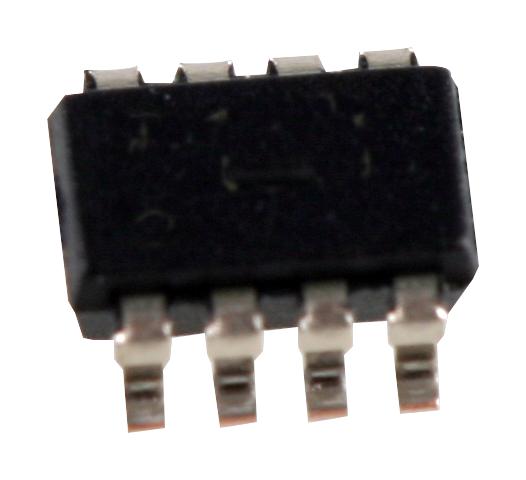

ANALOG DEVICES LTC2640AITS8-LM12#TRMPBF Digital to Analogue Converter, 12 bit, SPI, 2.7V to 5.5V, TSOT-23, 8 Pins

LTC2640AITS8-LM12#TRMPBF is a 12bit voltage-output DAC with an integrated, high-accuracy, 10ppm/°C low-drift reference. LTC2640-L has a rail-to-rail output buffer that is guaranteed monotonic. The LTC2640-L has a full-scale output of 2.5V and operates from a single 2.7V to 5.5V supply. The LTC2640 DAC uses a SPI/MICROWIRE� compatible 3-wire serial interface which operates at clock rates up to 50MHz. Applications include mobile communications, process control and industrial automation, automatic test equipment, portable equipment, automotive, and optical networking.

• Guaranteed monotonic over temperature, double-buffered data latches
• 2.5V full scale voltage, internal reference mode
• Reset to mid-scale (power on reset)
• Differential nonlinearity is ±1LSB maximum at (VCC = 3V, internal ref, TA = 25°C)
• Integral nonlinearity is ±1LSB typical at (VCC = 3V, internal ref, TA = 25°C)
• Offset error is ±0.5mV typical at (VCC = 3V, internal ref, TA = 25°C)
• Power supply rejection ratio is -80dB typical at (VCC = 3V ±10% or 5V ±10%)
• Voltage output slew rate is 1V/µs typical at (TA = 25°C, VCC = 2.7V to 5.5V)
• Multiplying bandwidth is 320KHz typical at (TA = 25°C, VCC = 2.7V to 5.5V)
• Industrial temperature range from -40°C to 85°C, 8-lead plastic TSOT-23 package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
