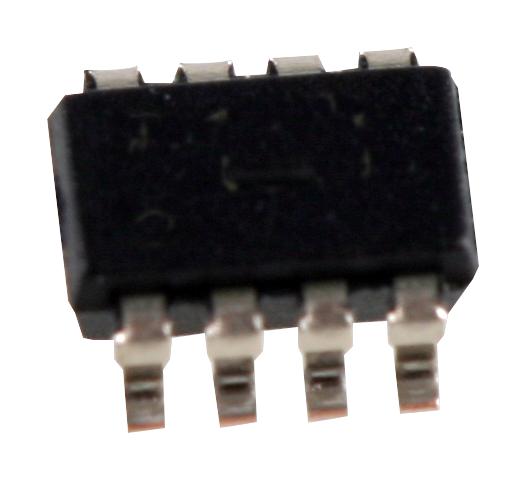

ANALOG DEVICES LTC2633CTS8-LI8#TRMPBF Digital to Analogue Converter, 8 bit, I2C, 2.7V to 5.5V, TSOT-23, 8 Pins

LTC2633CTS8-LI8#TRMPBF is a dual, 8bit voltage-output DAC with an integrated, high accuracy, low 10ppm/°C drift reference. LTC2633-L has rail-to-rail output buffers and is guaranteed monotonic. The LTC2633-L has a full-scale output of 2.5V and operates from a single 2.7V to 5.5V supply. These DACs communicate via a 2-wire I²C-compatible serial interface. The LTC2633 operates in both the standard mode (clock rate of 100KHz) and the fast mode (clock rate of 400KHz). The LTC2633 incorporates a power-on reset circuit. Applications include mobile communications, process control and industrial automation, power supply margining, portable equipment, and automotive.

• Supply voltage range from 2.7V to 5.5V, double-buffered data latches
• 2.5V full scale voltage, internal reference mode
• Reset to mid-scale in internal reference mode
• Integral nonlinearity is ±0.05LSB typical at (VCC = 3V, internal ref)
• Offset error is ±0.5mV typical at (VCC = 3V, internal ref)
• Power supply rejection ratio is -80dB typical at (VCC = 3V ±10% or 5V ±10%)
• Multiplying bandwidth is 320KHz typical at (TA = 25°C, VCC = 2.7V to 5.5V)
• Output voltage noise density is 180nV/?Hz typical at (f = 1KHz, external reference)
• Internal power-on reference mode, voltage output slew rate is 1V/µs typ at (TA = 25°C)
• Commercial temperature range from 0°C to 70°C, 8-lead plastic TSOT-23 package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
