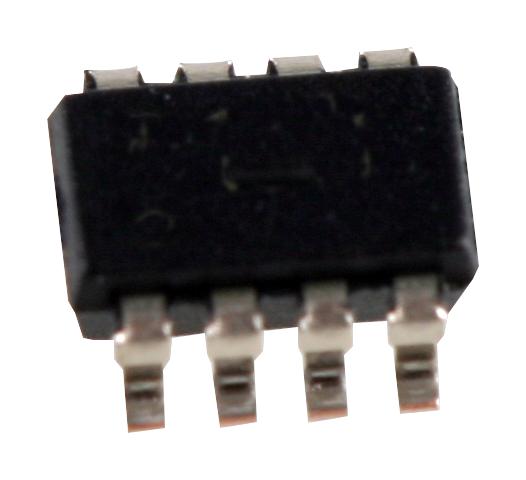

ANALOG DEVICES LTC2633ACTS8-LZ12#TRMPBF Digital to Analogue Converter, 12 bit, 2 Wire, I2C, Serial, 2.7V to 5.5V, TSOT-23, 8 Pins

LTC2633ACTS8-LZ12#TRMPBF is a 12bit voltage-output DAC with an integrated, high accuracy, low drift reference. LTC2633-L has rail-to-rail output buffers and is guaranteed monotonic. It has a full-scale output of 2.5V and operates from a single 2.7V to 5.5V supply. These DACs communicate via a 2-wire I²C-compatible serial interface. It operates in both the standard mode (clock rate of 100KHz) and the fast mode (clock rate of 400KHz). It incorporates a power-on reset circuit. Applications include mobile communications, process control and industrial automation, power supply margining, portable equipment, and automotive.

• Reset to zero-scale in internal reference mode, 12bit resolution
• Double-buffered data latches, supply voltage range from 2.7V to 5.5V
• Differential nonlinearity is ±1LSB maximum at (VCC = 3V, internal ref, TA = 25°C)
• Integral nonlinearity is ±1.5LSB maximum at (VCC = 3V, internal ref, TA = 25°C)
• VOS temperature coefficient is ±10µV/°C typical at (VCC = 3V, internal ref, TA = 25°C)
• Power supply rejection ratio is -80dB typical at (VCC = 3V ±10% or 5V ±10%)
• Supply current is 0.3mA typical at (VCC = 3V, VREF = 2.5V, external reference)
• Multiplying bandwidth is 320KHz typical at (TA = 25°C, VCC = 2.7V to 5.5V)
• Output voltage noise is 30µVP-P typical at (0.1Hz to 10Hz, external reference)
• Commercial temperature range from 0°C to 70°C, 8-lead plastic TSOT-23 package
