ANALOG DEVICES LTC2495IUHF#PBF Analogue to Digital Converter, 16 bit, 15 SPS, Differential, Single Ended, 2 Wire, I2C, Single

LTC®2495 is a 16-channel (eight differential), 16bit, No Latency DSTM ADC with Easy Drive technology and a 2-wire, I2C interface. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through automatic cancellation of differential input current. This allows large external source impedances and rail-to-rail input signals to be directly digitized while maintaining exceptional DC accuracy. The LTC2495 includes programmable gain, a high-accuracy temperature sensor and an integrated oscillator. This device can be configured to measure an external signal (from combinations of 16 analogue input channels operating in single-ended or differential modes) or its internal temperature sensor. The integrated temperature sensor offers 1/2°C resolution and 2°C absolute accuracy. Typical applications include direct sensor digitizer, direct temperature measurement, instrumentation and industrial process control.

• 600nV rms noise and programmable gain from 1 to 256
• Integrated high accuracy temperature sensor
• GND to VCC input/reference common mode range
• Programmable 50Hz, 60Hz, or simultaneous 50Hz/60Hz rejection mode
• 2ppm INL- no missing codes and 1ppm offset and 15ppm full-scale error
• 2x speed/reduced power mode (15Hz using internal oscillator and 80µA at 7.5Hz output)
• No latency: digital filter settles in a single cycle, even after a new channel is selected
• Single supply 2.7V to 5.5V operation (0.8mw) and internal oscillator

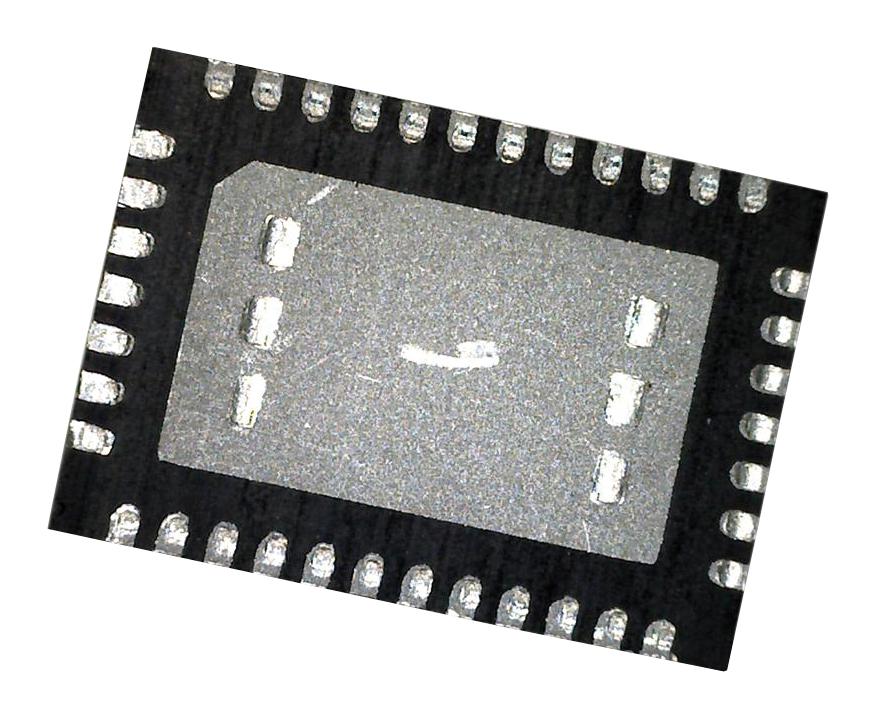

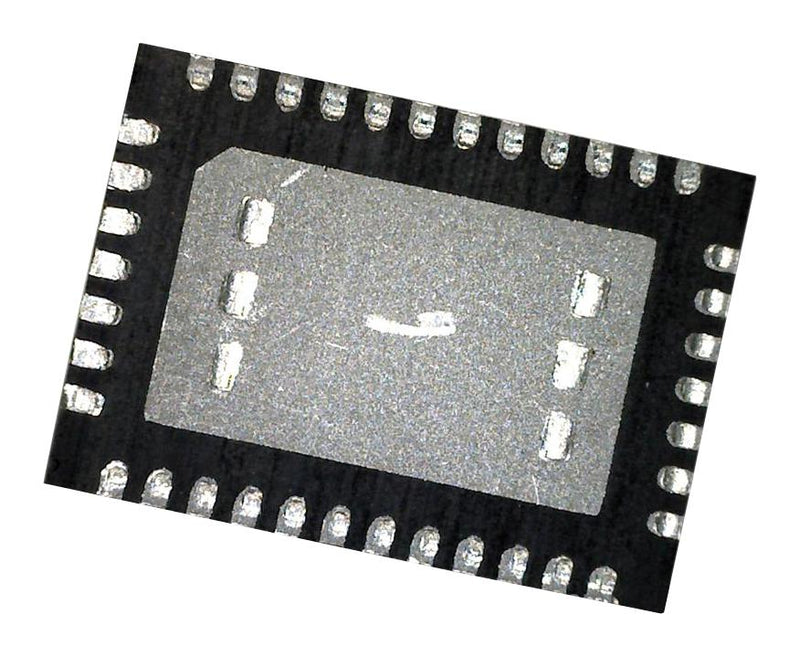

• 38 lead QFN package
• Operating temperature range from -40°C to 85°C
