ANALOG DEVICES LTC2489CDE#PBF Analogue to Digital Converter, 16 bit, 7.5 SPS, Differential, Single Ended, 2 Wire, SPI, Single

LTC®2489 is a 4-channel (2-channel differential), 16bit, No Latency DS� ADC with Easy Drive technology and a 2-wire, I2C interface. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through automatic cancellation of differential input current. This allows large external source impedances and rail-to-rail input signals to be directly digitized while maintaining exceptional DC accuracy. The LTC2489 includes an integrated oscillator. This device can be configured to measure an external signal from combinations of 4 analogue input channels operating in single-ended or differential modes. It automatically rejects line frequencies of 50Hz and 60Hz simultaneously. Typical applications include direct sensor digitizer, direct temperature measurement, instrumentation and industrial process control.

• Directly digitizes high impedance sensors with full accuracy
• 2-wire I2C interface with 9 addresses Plus One global address for synchronization
• 600nV rms noise (0.02LSB transition noise)
• GND to VCC input/reference common mode range
• Simultaneous 50Hz/60Hz rejection
• 2ppm INL, no missing codes and 1ppm offset and 15ppm full-scale error
• No latency, digital filter settles in a single cycle, even after a new channel is selected
• Single supply 2.7V to 5.5V operation (0.8mw) and internal oscillator

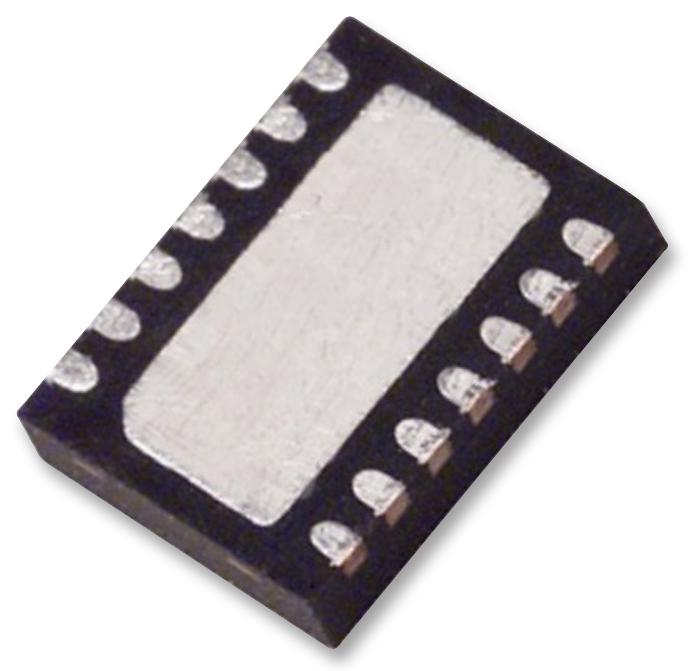

• 14 lead DFN package
• Operating temperature range from 0°C to 70°C
