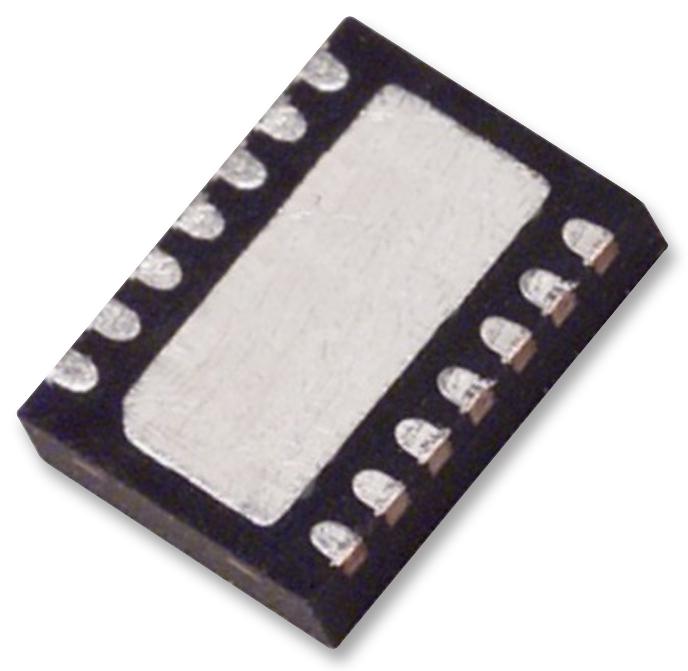

ANALOG DEVICES LTC2488CDE#PBF Analogue to Digital Converter, 16 bit, 6.9 SPS, Differential, Single Ended

LTC2488CDE#PBF is a 4-channel (2-channel differential), 16bit, No Latency ??� ADC with EasyDrive� technology. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through the automatic cancellation of differential input current. This allows large external source impedances and rail-to-rail input signals to be directly digitized while maintaining exceptional DC accuracy. It includes an integrated oscillator. This device can be configured to measure an external signal from combinations of 4 analogue input channels operating in single-ended or differential modes. It automatically rejects line frequencies of 50Hz and 60Hz simultaneously. It allows a wide common mode, input range (0V to VCC), independent of the reference voltage. Applications include direct sensor digitizer, direct temperature measurement, instrumentation, and industrial process control.

• Up to 2 differential or 4 single-ended inputs, internal oscillator
• Single supply operation range from 2.7V to 5.5V, simultaneous 50Hz/60Hz rejection
• GND to VCC input/reference common mode range
• Directly digitizes high impedance sensors with full accuracy
• Easy drive technology enables rail-to-rail inputs with zero differential input current
• Integral nonlinearity is 2ppm of VREF typical at (5V ? VCC ? 5.5V, VREF = 5V, VIN(CM) = 2.5V)
• Offset error is 0.5µV typical at (2.5V ? VREF ? VCC, GND ? IN+ = IN� ? VCC)
• Output noise is 0.6µVRMS typical at (2.7V <lt/> VCC <lt/> 5.5V, 2.5V ? VREF ? VCC, GND ? IN+ = IN� ? VCC)
• Supply current is 160µA typical at (conversion current, TA = 25°C)
• Operating temperature range from 0°C to 70°C, 14-lead plastic DFN package
