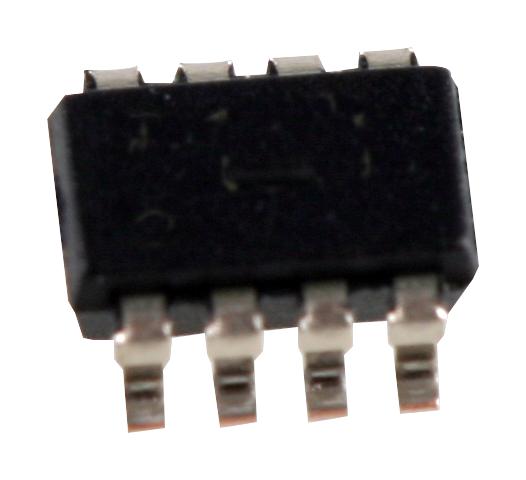

ANALOG DEVICES LTC2313HTS8-14#TRMPBF Analogue to Digital Converter, 14 bit, 2.5 MSPS, Single Ended, SPI, Single, 2.7 V

LTC2313HTS8-14#TRMPBF is a 14bit, 2.5Msps, serial sampling A/D converter that draws only 5mA from a single 3V or 5V supply. The extremely high sample rate-to-power ratio makes the device ideal for compact, low-power, high-speed systems. The supply current decreases at lower sampling rates as the device automatically enters nap mode after conversions. It has a high-speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. The fast 2.5Msps throughput with no cycle latency makes the device ideally suited for a wide variety of high speed applications. Applications include communication systems, high speed data acquisition, handheld terminal interface, medical imaging, uninterrupted power supplies, battery-operated systems, and automotive.

• No cycle latency, guaranteed 14bit no missing codes
• Nap mode with quick wake-up <lt/> 1 conversion, separate 1.8V to 5V digital I/O supply
• High speed SPI-compatible serial I/O, single 3V or 5V supply
• Integral linearity error is ±1LSB typical at (VDD = 5V, TA = 25°C)
• Offset error is ±2LSB typical at (VDD = 5V, TA = 25°C)
• Total unadjusted error is ±6LSB typical at (VDD = 5V, TA = 25°C)
• Signal-to-noise ratio is 77.5dB typical at (fIN = 497KHz, VDD = 5V, TA = 25°C and AIN = -1dBFS)
• 130MHz typical full power bandwidth at (3dB, TA = 25°C and AIN = -1dBFS)
• Total harmonic distortion is -85dB typical at (fIN = 497KHz, VDD = 5V, TA = 25°C and AIN = -1dBFS)
• Operating temperature range from -40°C to 125°C, 8-lead plastic TSOT-23 package
