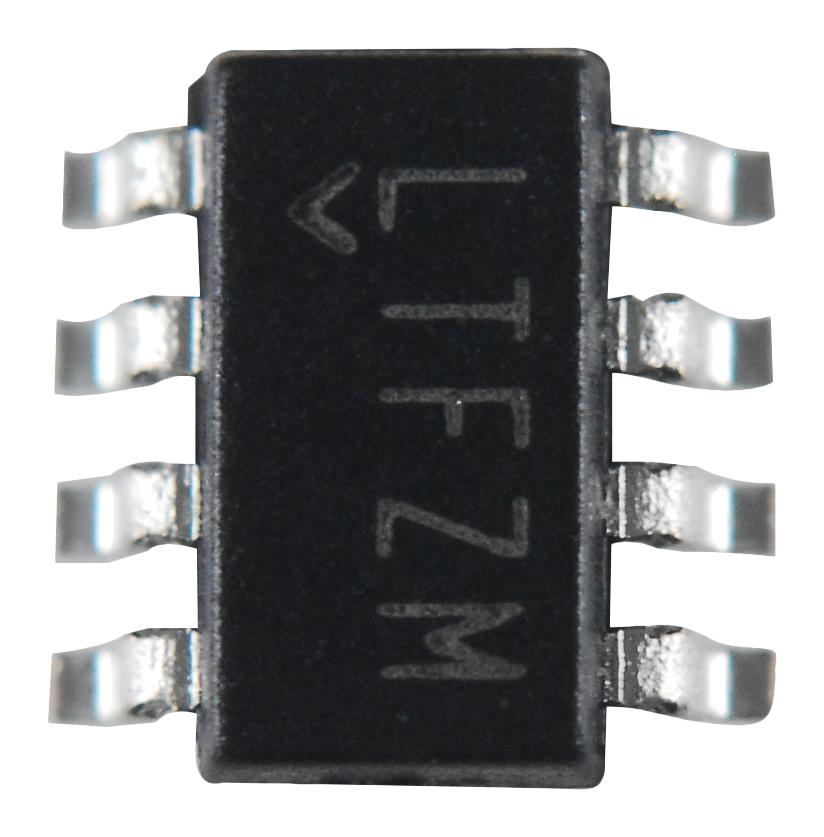

ANALOG DEVICES LTC2312CTS8-12#TRMPBF Analogue to Digital Converter, 12 bit, 500 kSPS, Single Ended, SPI, Single, 2.7 V

LTC2312CTS8-12#TRMPBF is a 12bit, 500ksps, serial sampling A/D converter that draws only 3mA from a single 3V or 5V supply. It contains an integrated low drift reference and reference buffer providing a low cost, high performance (20ppm/°C maximum) and space-saving solution. It achieves outstanding AC performance of 72.7dB SINAD and -84dB THD while sampling at 500ksps. The extremely high sample rate-to-power ratio makes the device ideal for compact, low-power high-speed systems. The supply current decreases at lower sampling rates as the device automatically enters nap mode after conversions. It has a high-speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3V and 5V logic. Applications include communication systems, high speed data acquisition, handheld terminal interface, medical imaging, uninterrupted power supplies, battery-operated systems, and automotive.

• 500ksps throughput rate, no cycle latency
• Guaranteed 12bit no missing codes, single 3V or 5V supply
• Nap mode with quick wake-up <lt/> 1 conversion, separate 1.8V to 5V digital I/O supply
• High speed SPI-compatible serial I/O, integral linearity error is ±0.3LSB typical at (VDD = 5V)
• Offset error is ±0.5LSB typical at (VDD = 5V, TA = 25°C)
• Signal-to-noise ratio is 73dB typical at (fIN = 20KHz, VDD = 5V)
• 130MHz typical full power bandwidth at (3dB, TA = 25°C and AIN = -1dBFs)
• Total harmonic distortion is -84dB typical at (fIN = 20KHz, VDD = 5V, TA = 25°C and AIN = -1dBFs)
• Aperture jitter is 10psRMS typical at (TA = 25°C and AIN = -1dBFS)
• Operating temperature range from 0°C to 70°C, 8-lead plastic TSOT-23 package
