| ₹ 11691.6 includes GST and import duties. | |
| B2B customers can avail ₹ 1782.97 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview
LTC®2271 is a 2-channel, simultaneous sampling 16bit A/D converter designed for digitizing high frequency, wide dynamic range signals. Typical applications include low power instrumentation, software-defined radios, portable medical imaging and multi-channel data acquisition.
- Serial LVDS outputs is 1, 2 or 4bits per Channel
- 84.1dB SNR (46?VRMS input referred noise) and 99dB SFDR
- Low power of 185mW total, 92mW per channel
- ±2.6LSB INL, ±0.8LSB DNL, ±7mV offset error and ±10?V/°C offset drift
- Single 1.8V supply and selectable input range from 1VP-P to 2.1VP-P
- 200MHz full-power bandwidth S/H
- Shutdown and nap modes and serial SPI port for configuration
- Pin compatible with LTC2190 16bit, 25Msps, 104mW

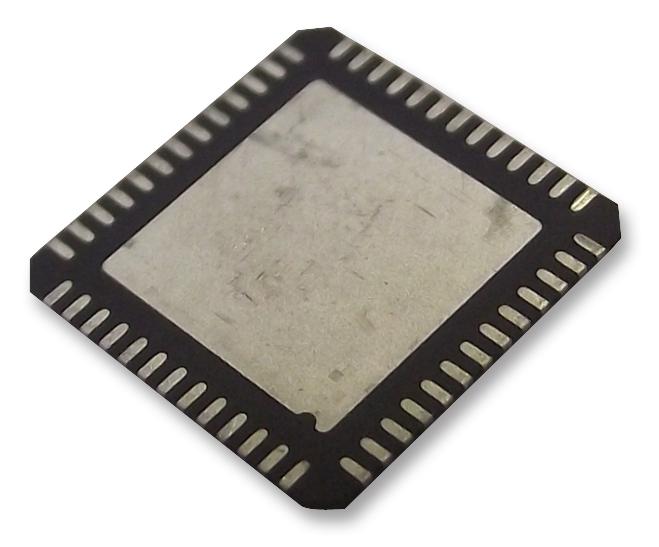

- 52 lead QFN-EP package
- Operating temperature range from 0°C to 70°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LTC2271CUKG#PBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 11457.77 |
| 3-5 | ₹ 11340.85 |
| 5-10 | ₹ 11107.02 |
| 10+ | ₹ 10873.19 |
Bulk discount will be automatically applied during checkout based on quantity.
