Description
Product Overview
LTC®1605 is a 100Ksps, sampling 16bit A/D converter that draws only 55mW (typical) from a single 5V supply. This easy-to-use device includes sample-and-hold, precision reference, switched capacitor successive approximation A/D and trimmed internal clock. It is suitable for use in industrial process control, multiplexed data acquisition systems, high speed data acquisition for PCs, digital signal processing.
- Single 5V supply
- Bipolar input range: ±10V
- 87dB signal-to-(noise + distortion) ratio at 10KHz input signal
- Guaranteed no missing codes
- 100Ksps sample rate
- Max ±2.0LSB integral nonlinearity
- Improved 2nd source to ADS7805 and AD976
- Operates with internal or external reference, internal synchronized clock

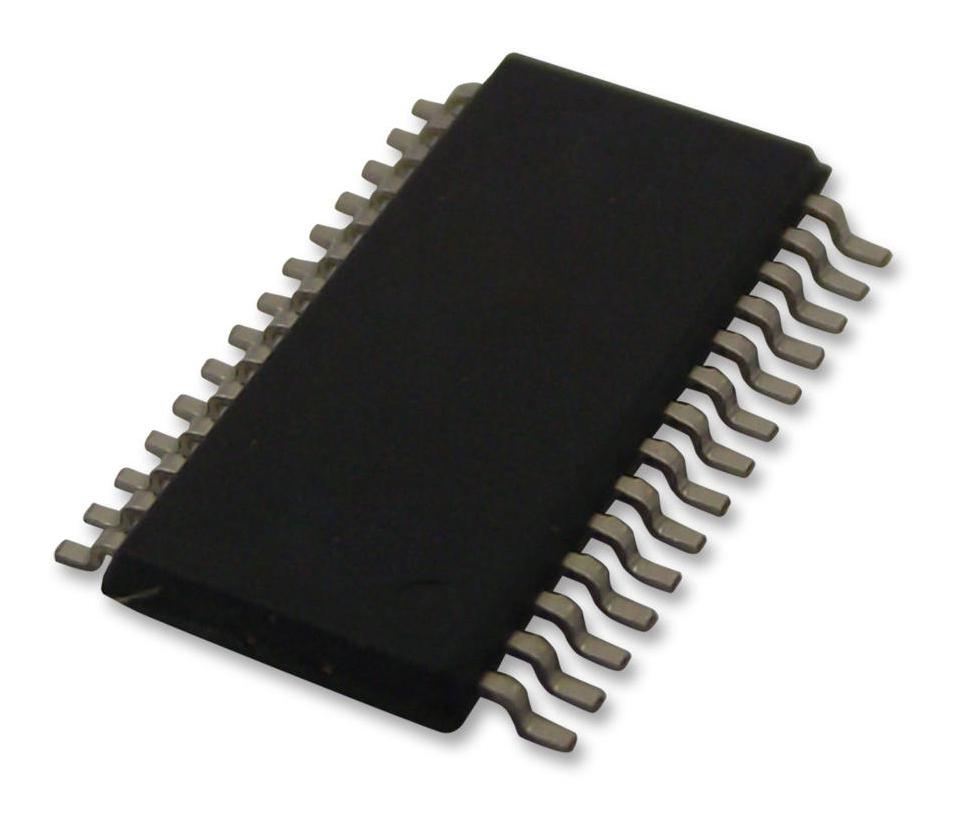

- 28-lead plastic SSOP
- Temperature range from 0°C to 70°C
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | LTC1605ACG#PBF |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 10047.04 |
| 3-5 | ₹ 9944.52 |
| 5-10 | ₹ 9739.48 |
| 10+ | ₹ 9534.43 |
Bulk discount will be automatically applied during checkout based on quantity.
