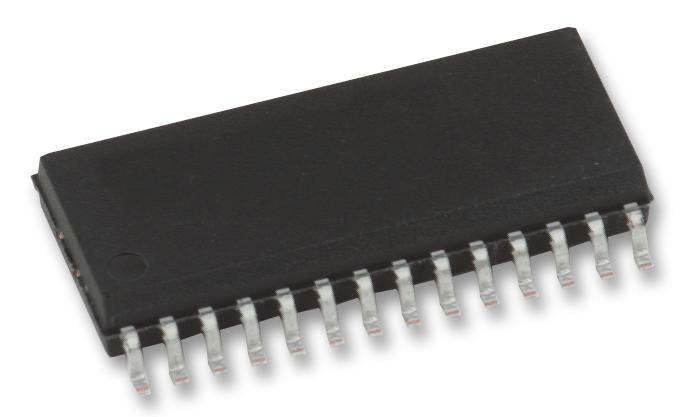

ANALOG DEVICES DAC8408FSZ Digital to Analogue Converter, 8 bit, 5V, SOL, 28 Pins

DAC8408FSZ is a monolithic quad 8bit multiplying digital-to-analogue CMOS converter. Each DAC has its own reference input, feedback resistor, and onboard data latches that feature read/write capability. The readback function serves as a memory for those systems requiring self-diagnostics. A common 8bit TTL/CMOS compatible input port is used to load data into any of the four DAC data-latches. It operates on a single +5volt supply and dissipates less than 20mW. It is manufactured using PMI�s highly stable, thin-film resistors on an advanced oxide-isolated, silicon-gate, CMOS process. PMI�s improved latch-up resistant design eliminates the need for external protective Schottky diodes. It is used in applications such as voltage set points in automatic test equipment, systems requiring data access for self-diagnostics, industrial automation, multichannel microprocessor-controlled systems, digitally controlled op-amp offset adjustment, process control, and digital attenuators.

• Guaranteed monotonic, DACs matched to within 1%, microprocessor compatible
• Read/write capability (with memory), TTL/CMOS compatible, four-quadrant multiplication
• Single-supply operation (+5V), low power consumption, latch-up resistant
• Gain error is ±2ppm/°C typical at (VDD = +5V; VREF = ±10V)
• Propagation delay- is 150ns typical at (VDD = +5V; VREF = ±10V)
• Settling time is 190ns typical at (VDD = +5V; VREF = ±10V)
• Supply voltage range from 4.5V to 5.5V, supply current is 50µA maximum
• Leakage current is ±30nA maximum at (VDD = +5V; VREF = ±10V)
• Input capacitance is 8pF maximum at (VDD = +5V; VREF = ±10V)
• Operating temperature range from -40°C to +85°C, 28-pin SOL package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
