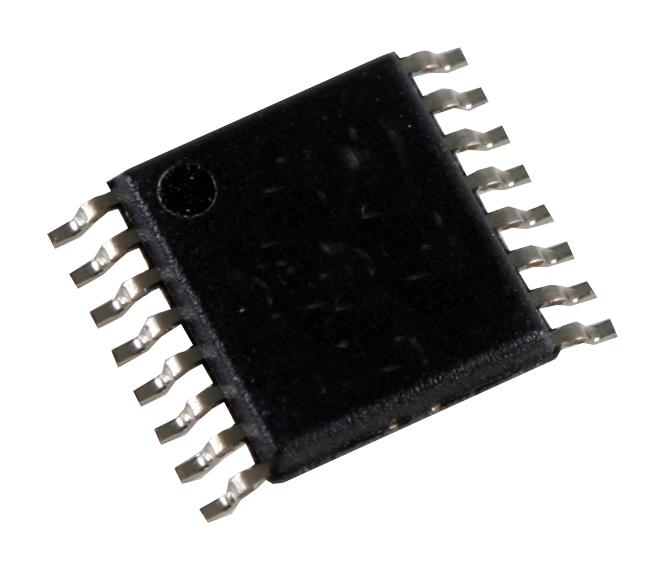

ANALOG DEVICES AD7804BRZ Digital to Analogue Converter, 10 bit, Serial, 3.3V to 5V, WSOIC, 16 Pins

AD7804BRZ is a quad 10bit digital-to-analogue converter, with serial load capabilities. It operates from a +3.3V to +5V (±10%) power supply and incorporates an on-chip reference. This DAC provides output signals in the form of VBIAS ±VSWING. VSWING is derived internally from VBIAS. On-chip control registers include a system control register and channel control registers. The system control register has control over DAC in the package. The channel control registers allow individual control of DAC. The complete transfer function of each individual DAC can be shifted around the VBIAS point using an on-chip Sub DAC. It contains double-buffered data inputs, which allow all analogue outputs to be simultaneously updated using the asynchronous LDAC input. Applications include optical disk drives, instrumentation and communication systems, process control and voltage setpoint control, trim potentiometer replacement, and automatic calibration.

• Quad 10bit serial loading, +3.3V to +5V supply operation
• Power-down mode, power-on reset, low power all CMOS construction
• Double buffered DAC registers, dual external reference capability
• Relative accuracy is ±3LSB maximum at (AVDD and DVDD = 3.3V ±10% to 5V ±10%)
• Gain error is ±3% FSR maximum at (AVDD and DVDD = 3.3V ±10% to 5V ±10%)
• Slew rate is 2.5V/µs typical at (AVDD and DVDD = 3.3V ±10% to 5V ±10%)
• Differential nonlinearity is ±0.5LSB maximum at (AVDD and DVDD = 3.3V ±10% to 5V ±10%)
• Digital-to-analogue glitch impulse is 1nV-s typical at (AVDD and DVDD = 3.3V ±10% to 5V ±10%)
• DC output impedance is 2 ohm typical at (AVDD and DVDD = 3.3V ±10% to 5V ±10%)
• Operating temperature range from -40°C to +105°C, 16-lead small outline IC package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
